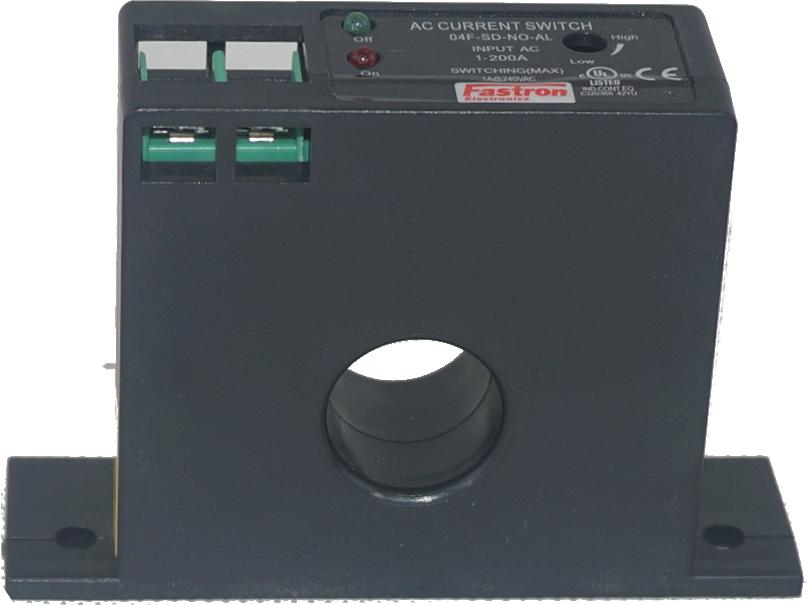

16F SD NO AL AC Current Switch - Multirange 1-10A, 10-50A, 50-200A - Self Powered with 10% Accuracy & Adjustable Trip Perfect for Industrial Automation, Motor Protection, and Power Monitoring Systems - 0.5+/-0.2A Minimum Threshold, 0.3A @ 135VAC/DC, Normally Open Contacts
$22.55 $41
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:32285678
Guranteed safe checkout
Product Description
Fastron 16F-SD-NO-AL, AC Current Switch, Multirange 1-10A, 10-50A, 50-200Amp, Self Powered, 10% Accuracy, 0.5 +/-0.2 Minimum ThreshholdAverage RMS Current Sensing, Normally Open Contacts, 0.3Amp @ 135VAC/DC Adjustable Trip
Compact and versatile current switches for detection of AC Currents, Multirange 1-10Amp, 10-50Amp, 50-200Amp via jumper
Features
- Multirange selector
- Panel mounting
- Eliminates insertion loss
- Isolated plastic case recognised according to UL94-V0
Advantages
- Highly accurate low current measurement down to 1Amp
- High isolation between primary and secondary circuits
- Easy installation
Applications
Fault Detection
- Motor or Fan Protection
Application Domain
Energy and Automation
Specification
| Fastron Part Number | 16F-SD-NO-AL |
| Technology | Solid Core AC Current Transformer |
| Alarm Type | NO Relay 0.3Amp @ 135VAC/DC |
| Supply Voltage | Self Powered |
| Load Current (RMS) | Multirange 1-10A, 10-50A, 50-200Amp |
| Trip Point | Adjustable |
| Isolation | 2kV (AC, 50Hz, 1 min) |
| Bandwidth | 50/60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -25°C / 70°C |
| Accuracy | 10% (Minimum Threshold 0.5 +/-0.2 Amp) |
| Termination Style | Screw Terminals |
| Unit Weight | 200g |
| Certifications | UL E320368, CE, Rohs compliant |
