20Amp Solar Fuse 10.3x38mm GpV - 1000VDC/20kA & 275VAC/10kA IEC 61730-2 Certified - Compatible with Solar Panels, Inverters, and PV Systems
$7.64 $13.9
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:38260976
Guranteed safe checkout
Product Description

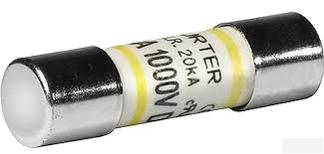

Schurter 8020.2052 AEO 10.3x38mm GpV Fast Blow Solar Fuse 20Amp, 1000VDC, 20kA, IEC 61730-2
Features
- Meets the new UL and IEC photovoltaic standards
- UL Recognized for 1000 VDC, and 275VAC
- High breaking capacity of 20 kA @ 1000 VDC, 10kA @ 175VAC
- Low min. interrupting rating of 1.35 x In
- Meets the requirements of IEC 61730-2 for PV module safety
Applications
- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Specification
| Schurter Part Number | 8020.2052 |
| Fuse Type | I²t GpV Fast Blow |
| Nominal Voltage | 1000VDC, 275VAC |
| I²t Rating (Pre-Arcing) | 1507 A²/s |
| Nominal Current (DC) | 20 Amp |
| Tested Breaking Capacity | 20kA @1000VDC 10kA @ 275VAC |
| Dimensions | 10.3 x 38mm |
| Fuse Holder | |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 1.3W |
| DC Breaking Capacity | 20kA |
| Unit Weight | 8g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuse Holder
