ASO 10.3x38 GpV Solar Fuse 8Amp, 1000VDC, 20kA, IEC 61730-2 Certified - High Voltage Solar Panel Protection for PV Systems, Solar Inverters & Renewable Energy Applications
$7.97 $14.5
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:38562315
Guranteed safe checkout
Product Description

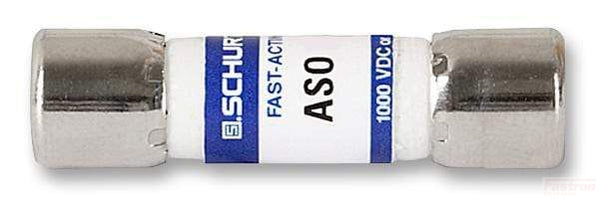

Schurter 0090.0008 ASO 10.3x38mm GpV Fast Blow Solar Fuse 8Amp, 1000VDC, 20kA, IEC 61730-2
Features
- Meets the new UL and IEC photovoltaic standards
- UL Recognized for 1000 VDC
- High breaking capacity of 20 kA @ 1000 VDC
- Low min. interrupting rating of 1.35 x In
- Meets the requirements of IEC 61730-2 for PV module safety
Applications
- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Specification
| Schurter Part Number | 0090.0008 |
| Fuse Type | I²t GpV Class Fast Blow |
| Nominal Voltage | 1000VDC |
| I²t Rating (Pre-Arcing) | 199 kA²/s |
| Nominal Current (DC) | 8 Amp |
| Tested Breaking Capacity | 20kA @1000VDC |
| Dimensions | 10.3 x 38mm |
| Fuse Holder | |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 1.61W |
| DC Breaking Capacity | 20kA |
| Unit Weight | 8g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuse Holder
