AI P1A M2 Accessory Kit - Multi Stacking Connector for AI P1A Integrator (LEM Part# 90.T8.98.001.0) - Perfect for Industrial Automation & Robotics Applications

Product Description

LEM AI-P1A M2 Accessory Kit, Multi Stacking Connector for AI-P1A Integrator, LEM Part# 90.T8.98.001.0

Application

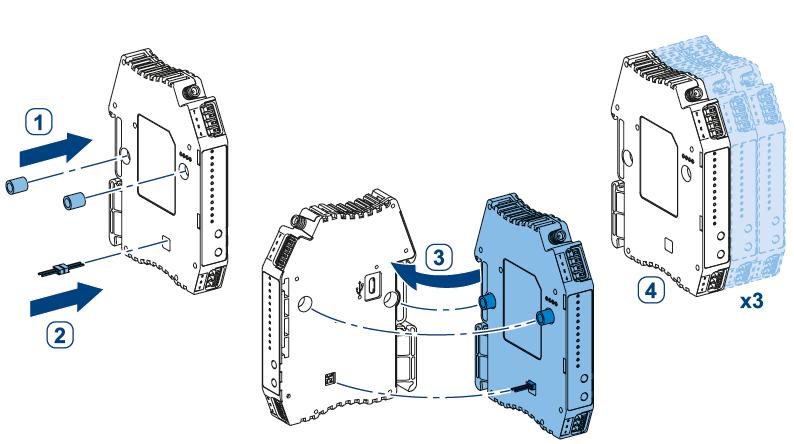

Cross Power Plug-in: side contacts to stack up to 3 Integrator modules and use only one power supply.

Note: Included in 3pcs coil and integrator package

Application Notes

1) The Rogowski coil can measure any primary current as there is no saturation effect.

2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts)

3) Frequency bandwidth and phase shift modelling schematic can be provided on request.

4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer)

5) Considering a primary conductor of at least ⌀ 15 mm, perpendicular and in contact with the Rogowski coil.

6) Considering an external conductor of at least ⌀ 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.
