100NAF Series 250V 100Amp aR Semiconductor Fuse BS88 Style 200kA Breaking Capacity - High Power Protection for Industrial Equipment, Solar Inverters, and EV Charging Stations
$10.39 $18.9
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:40683226
Guranteed safe checkout
Product Description

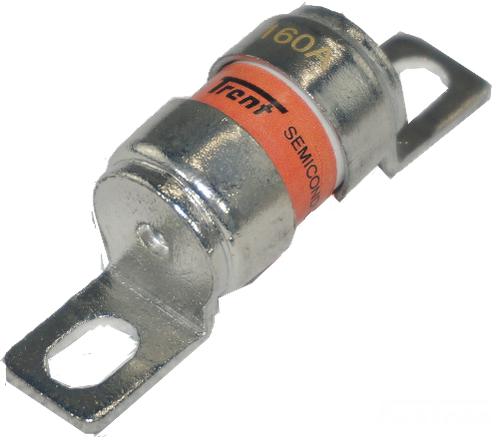

Trent 100NAF Series 250V, 100 Amp, aR Semiconductor I²t Fuse BS88 Style
Features
- Equivalent to Mersen 2.5 URZ 17/100 Y085558, ETI BS17UQ/41/100A/240V
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1050 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 250 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 100NAF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 250VAC @ 50Hz |
| I²t Rating | 4060 A²/s |
| Nominal Current (RMS + DC) | 100 Amp |
| Tested Breaking Capacity | 200kA @ 250VAC |

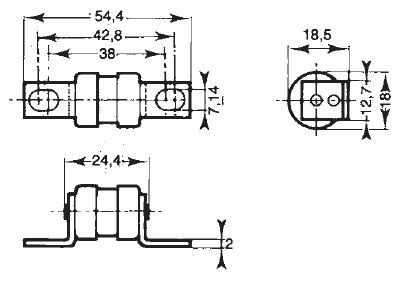

| Dimensions | 54 x 18mm |
| Hole Centers | 38 x 42.8mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 12W |
| Termination Style | M6 |
| Unit Weight | 30g |
| Factory Pack Qty | 10 |
