75AF Semiconductor Fuse 690VAC 75 Amp aR Class - High Voltage Protection for Industrial Equipment, Solar Inverters & Power Electronics
$18.26 $33.2
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:40790164
Guranteed safe checkout
Product Description

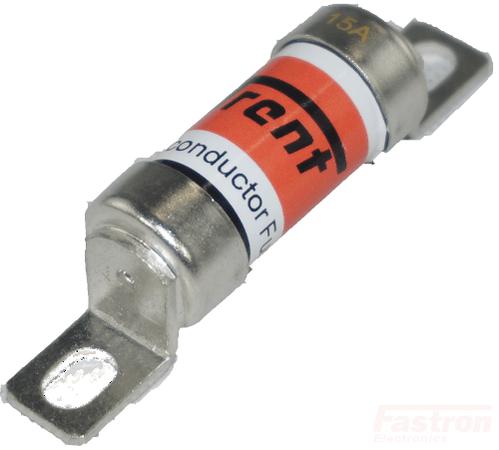

Trent 75AF Series 690V, 75 Amp Semiconductor I²t Fuse BS88 Style, aR
Features
- Equivalent to Mersen 6.9 URS 17/75 S075893, Bussmann 80ET, ETI BS17UQ/63/80A/690V
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1000 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 75AF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (IP < 30IN) | 3350 A²/s |
| I²t Rating (IP > 30IN) | 4630 A²/s |
| Nominal Current (RMS + DC) | 75 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |

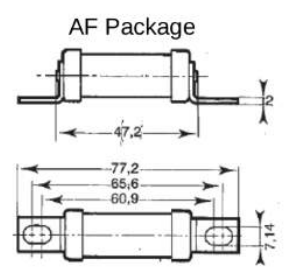

| Dimensions | 17 x 49mm |
| Hole Centers | 60.9 - 65.6mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 14.4W |
| Termination Style | M6 |
| Unit Weight | 61g |
| Factory Pack Qty | 10 |
