AK 50 C10 AC Current Sensor - Selectable 10/20/50 Amp with 10V RMS Output - 19mm Round Aperture for Industrial Equipment, HVAC Systems & Energy Monitoring
$188.98 $343.6
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:41774750
Guranteed safe checkout
Product Description

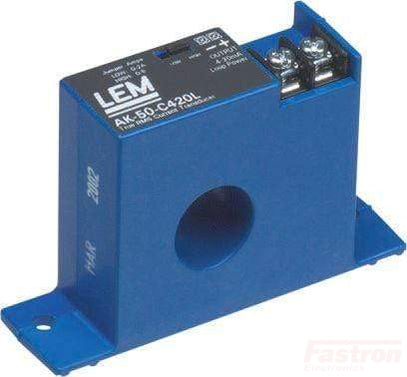

LEM AK Series Average RMS Solid Core AC Current Sensor with Process Outputs
Compact and versatile Solid Core AC current sensor, selectable 10, 20, 50 Amp Average RMS. Choice of output types: 4-20 mA, 0-5 V or 0-10 V
Features
- Solid Core
- Average RMS output
- 0-10V voltage output
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ⌀19mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | AK 50 C10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | Self Powered |
| Nominal Current (RMS + DC) | 10,20,50 Amp Selectable |
| Maximum Measurement Current (Peak) | 17,34,85 Amp |
| Output | 0-10V Average RMS |
| Aperture | ⌀19mm |
| Isolation | 3kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | 2 x UNC8 Cylindric Head |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
