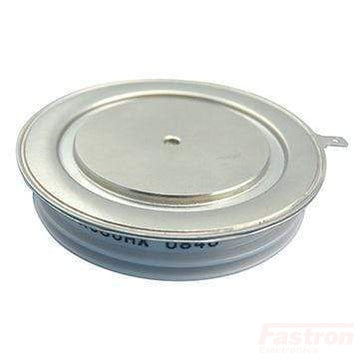

High Power Thyristor (SCR) PUK 690 Amp 1600V 41/14 - Reliable Semiconductor for Industrial Motor Controls, Power Supplies & Heavy Equipment Applications
$63.25 $115
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:43701337
Guranteed safe checkout
Product Description
Miller 148091 9H25 0936 Thyristor(SCR) Capsule
Features
- Very low forward voltage drop
- Very low leakage current
- International standard package
- 41/14 Package
- Press Mounted
- Double or Single Sided Cooling
Applications
- Power Supplies
- Rectifier for drives applications
- Controlled Rectifiers
- AC Switch
- Battery Chargers
- Phase Controllers
- Water Cooled AC switches
- Power Factor Correction
Specification
| Miller Part Number | 148091 9H25 0936 |
| Vrrm | 600V |
| SCR Configuration | Thyristor(SCR) Capsule PUK |
| IF(av) @ 85 Deg C | 694 Amp |
| Package Size | ø41 x 14mm |
| Itsm | 7.8 kA |
| VF(to) | .8V |
| Tj(max) | 125°C |
| rF | 0.44mΩ |
| Gate Terminals | Faston 4.8 x 0.8mm & 2.8 x 0.8mm |
| R th(j-c) (double sided cooled 180°sin) | 0.051°C/W |
| R th(c-h) (double sided cooled) | 0.015°C/W |
| Weight | 70g |
| Clamping Force | 4 - 8kN |
| Factory Pack Qty | 12 |
| Certification | ROHS |
| Infineon Headquarters | Germany |
Datasheet
Alternatives
, Obsolete,
Heatsink
