Product Description

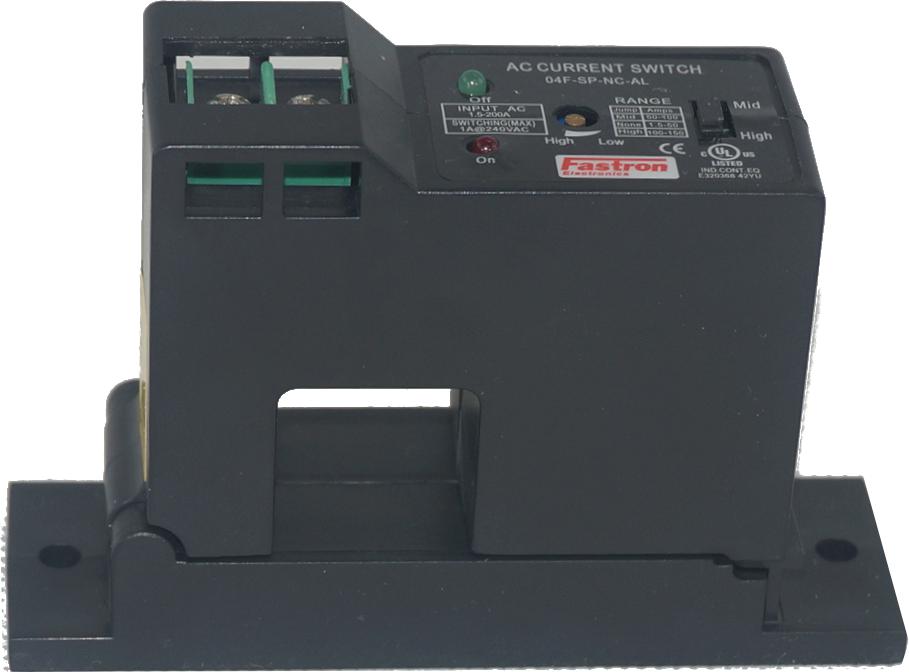

Fastron 04F-SP-NO-AL, Split Core AC Current Switch, Multirange 1-10A, 10-50A, 50-200Amp Self Powered, 10% Accuracy, Minimum Threshold 1.5 +/-0.2 Amp Average RMS Current Sensing, Normally Open Contacts, 1Amp @ 240VAC Adjustable Trip
Compact and versatile current switches for detection of AC Currents, Multirange 1-10Amp, 10-50Amp, 50-200Amp via jumper
Features
- Self Powered
- Multirange selector
- Panel mounting
- Eliminates insertion loss
- Isolated plastic case recognised according to UL94-V0
Advantages
- Highly accurate low current measurement down to 1Amp
- High isolation between primary and secondary circuits
- Easy installation
Applications
- Fault Detection
- Motor or Fan Protection
Application Domain
Energy and Automation
Specification
| Fastron Part Number | 04F-SP-NO-AL |
| Technology | Split Core AC Current Transformer |
| Alarm Type | NO Relay 1Amp @ 240VAC |
| Supply Voltage | Self Powered |
| Load Current (RMS) | Multirange 1-10A, 10-50A, 50-200Amp |
| Trip Point | Adjustable |
| Isolation | 2kV (AC, 50Hz, 1 min) |
| Bandwidth | 50/60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -25°C / 70°C |
| Accuracy | 10% (Minimum Threshold 1.5 +/-0.2 Amp) |
| Termination Style | Screw Terminals |
| Unit Weight | 200g |
| Certifications | UL E320368, CE, Rohs compliant |
