4430.0031 ABTWF150C0 2 Pole Rocker Switch, Non-Latched, 15A 240VAC, 1 Pole Thermal Overload Protection, Screw Terminal, White - Ideal for Industrial Equipment, HVAC Systems, and Electrical Control Panels
$19.25 $35
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:46754308
Guranteed safe checkout
Product Description

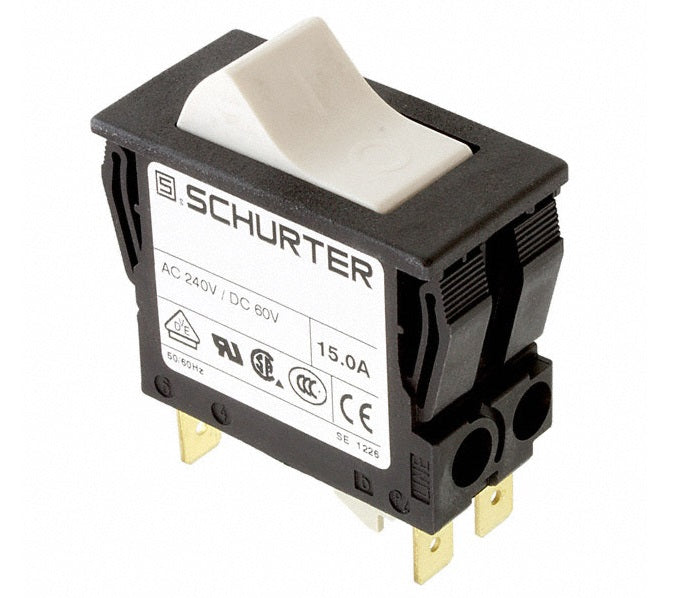

Schurter, 4430.0031 ABTWF150C0, 2 Pole Rocker Switch, Non Latched, 15 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed White
Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction
Description
- Rocker Switch
- Thermal circuit breaker
- 2-pole - Power tools
- Manual ON/OFF type
- Quick connect terminals 6.3 x 0.8 mm
Features :
- < 3mS Trip Delay Time
- 1 Pole Disconnect
- 1kA Short Circuit Rating
- Suitable for 500VDC Isolation
Applications:
- Power Tools
- Household Equipment
- Power Supplies and Chargers
- Industrial Appliances
Standards :
- IEC 60934
- 2 x Ir: 5000 Cycles
- 500VDC Insulation Resistance
- 1.5kV (50Hz) Dielectric Strength
- Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip
- @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips
Specification
| Schurter Part Number | 4430.0031 ABTWF150C0 |
| Functions | 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker |
| Nominal Voltage | 240VAC @ 50Hz or 28VDC |
| Nominal Current Range | 15 Amp RMS |
| Trip Delay Time | < 3ms |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | -25 to 55 Deg C |
| Illumination | Transparent Green |
| Insulation Resistance | 500VDC |
| Dielectric Strength | 1.5kV (50Hz) |
| Short Circuit Current | 1kA |
| Approvals | UL, CSA |
| Standards | IEC 6094 |
| Weight | 100g |
| Enclosure Material | UL94 |
| Factory Pack Qty | 1 |

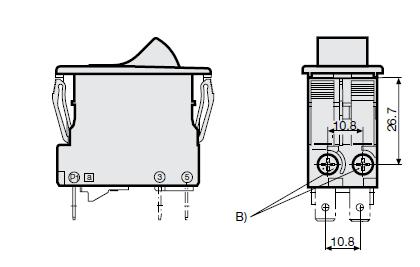

Datasheet
