12.5kvar 525V 50Hz 3 Phase Power Factor Correction Capacitor - 3 x 48.1uF Gas Filled with Internal Discharge Resistors (75 x 230mm) - Ideal for Industrial Equipment, HVAC Systems & Power Distribution Networks
$102.3 $186
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:52623148
Guranteed safe checkout
Product Description

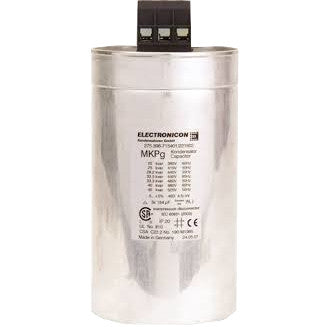

Electronicon 275.546-604800/221K02, 12.5kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 75 x 230(+32 +5/-2)mm Gas Filled, 3 x 48.1uF, Internal Discharge Resistors
Characteristics and utility
- 12.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar
- Three phase capacitor DUAL WINDING internally delta connected
- Discharge resistors Incorporated
- Reactive power factor correction
- Gas Filled Lightweight Construction

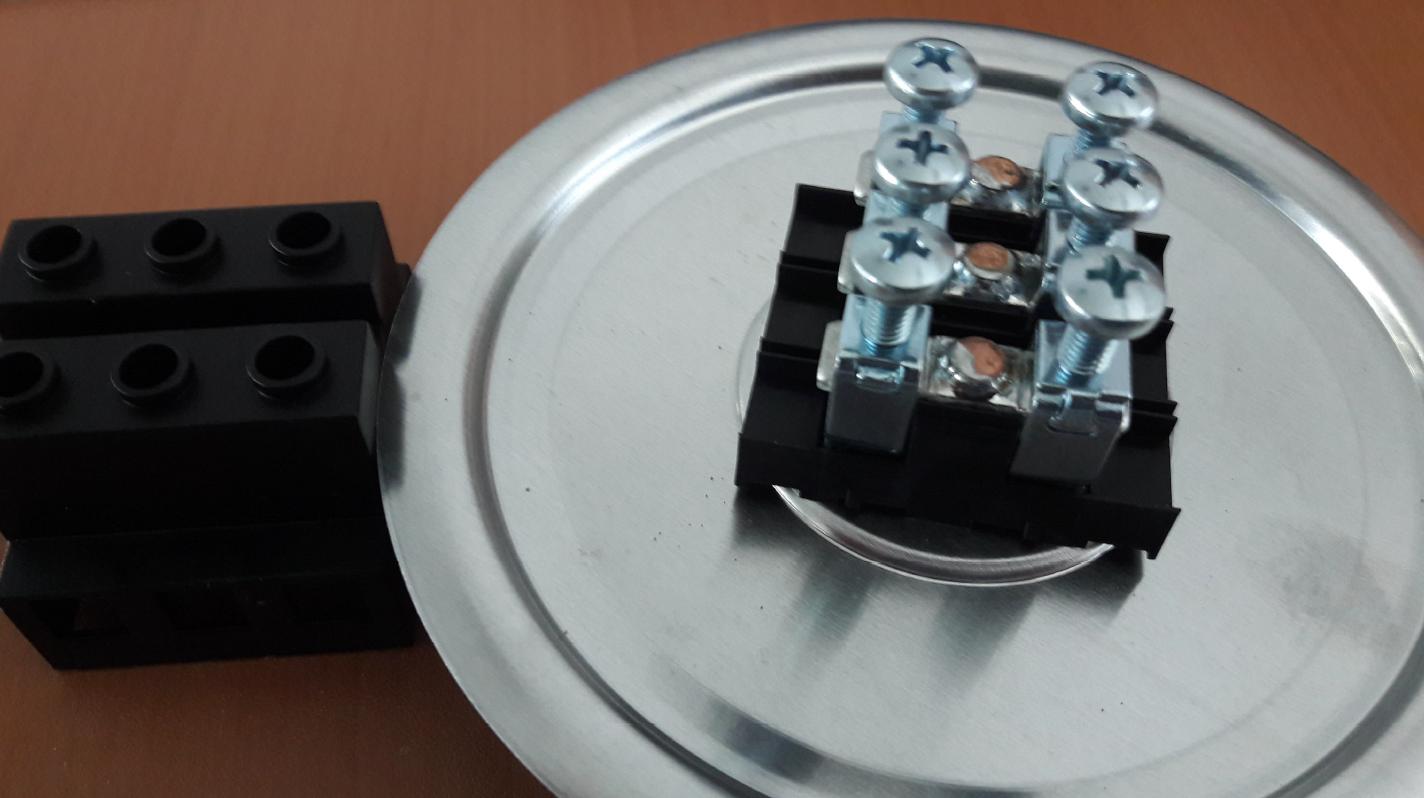

- Connector type - single sided terminal
- Indoor mounting
Triple safety
- Overpressure disconnection system
- Protection by internal fuses
- Self Healing
Construction and materials
- Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ
- Aluminium case with bottom fixing M12x16
Standards
- IEC 60831-1/2
- EN 60831-1/2
Specification
| Electronicon Part Number | 275.546-604800/221K02 |
| Technology | Gas Filled, Low Loss, Self Healing |
| Dimensions | 75 x 230(+32)mm |
| Standards | IEC 60831-1/2, EN 60831-1/2 |
| Voltage | 525V @ 50Hz |
| Kvar | 12.5 Kvar |
| Capacitance | 3 x 48.1uF |
| Tolerance On Capacitance | -5% + 10% (others on request) |
| Current (In) | 3 x 13.7 Amp |
| Overpressure Disconnection System | YES |
| Self Extinguishing Resin | YES |
| Internal Fuses | YES |
| Self Healing | YES |
| Mounting | M12 x 16mm (Indoor) |
| Operating Temperature Range | 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) |
| Lifetime | 120,000 Hours |
| Termination Style | Filter Type Terminal |
| Approvals | UL 810, CSA C22.2 No.90 |
| Unit Weight | 1.6kg |
| Factory Pack Quantity | 30 |
