ACSP 200 010 Self-Powered Split Core AC Current Transducer - 200A AC Current Sensor with 0-10V RMS Output, 31mm Aperture - Perfect for Solar Panel Monitoring, Industrial Equipment, and Energy Management Systems
$136.95 $249
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:53872794
Guranteed safe checkout
Product Description
ACSP-200-010, Self Powered Split Core AC Current Transducer, 200 Amp AC, 0-10V Average RMS Output, 31mm aperture
Compact and versatile Self Powered Split Core AC Current Transducer, Comes with 0-10V/0-5V, or 4-20mA Average RMS Analogue Output
Features

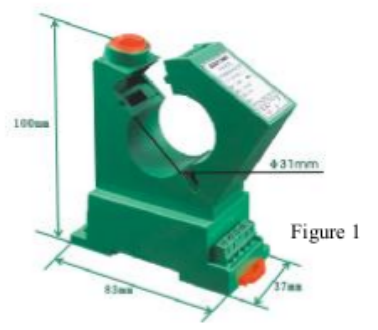

- ⌀31mm Aperture
- Split Core
- AC Average RMS Measurement
- +/-10V analogue output
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | ACSP-200-010 |
| Technology | AC Hall Effect Current Transducer with Process Output |
| ROHS | Yes |
| Supply Voltage | Self Powered |
| Nominal Current (DC) | 200 Amp RMS |
| Response Time | < 200mS |
| Output | 0-10VDC Analogue |
| Isolation | 2.5kV (AC, 50Hz, 1 min) |
| Bandwidth | 50/60Hz |
| Mounting Style | DIN Rail Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Elevator Screw |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
