Product Description

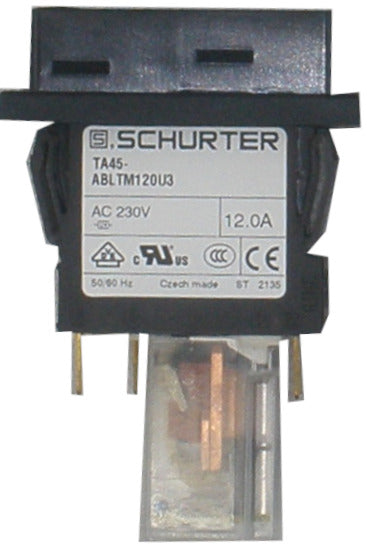

Schurter, 4430.2027 TA45-ABLTM120U3, 2 Pole Pushbutton Switch, Non Latched, 12 AMP, 240VAC, 1 Pole Thermal Overload Protection, Undervoltage Release, Faston Connection, No Illumination, IP40

Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction

Description

• Pushbutton Switch
• Undervoltage release
• Thermal circuit breaker
• 2-pole - Power tools
• Manual ON/OFF type
• Quick connect terminals 6.3 x 0.8 mm

Features :

• < 3mS Trip Delay Time
• 1 Pole Disconnect
• 1kA Short Circuit Rating
• Suitable for 500VDC Isolation

Applications:

• Power Tools
• Household Equipment
• Power Supplies and Chargers
• Industrial Appliances

Standards :

• IEC 60934
• 2 x Ir: 5000 Cycles
• 500VDC Insulation Resistance
• 1.5kV (50Hz) Dielectric Strength
• Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip
• @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips
