IEC C20 Right Angle Appliance Outlet - 16A Black Power Connector for Servers, UPS & Medical Equipment
$3.02 $5.5
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:22 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:56628119
Guranteed safe checkout
Product Description

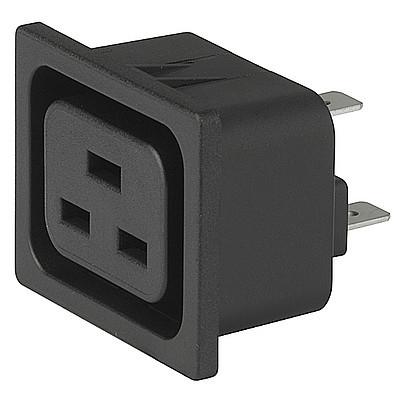

Schurter 4797.0020, IEC Appliance Outlet C20, Right Angled, Black, 16 Amp
Features
- Panel Mount : Snap-in Mounting from Front Side
- Appliance Inlet C20 Plug acc to IEC 60320-1
- Screw On Mounting
- 70 °C pin Temperature
Characteristics
- UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I
- Other Pin versions available on request
- Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1
Specification
| Schurter Part Number | 4797.0020 |
| Rated Voltage | 250V |
| Rated Current | 16A (CE) 20A (UL/CSA) |
| Maximum Cable Diameter | 10mm |
| Operating Temperature | -25°C to 70°C |
| Mounting | Wire Screw Mount/Outlet |
| Material | Thermoplastic, black, UL 94V-0 |
| Termination Style | C20/Screw Terminal |
| Weight | 40g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP30 acc. to IEC 60529 |
| Isolation | 2kV |
| VDE/UL/CSA/CE/ROHS | Yes |
