Fluke P3100 Hydraulic Deadweight Tester Kit - Compatible with P3111, P3112, P3113 Pressure Calibration - Perfect for Industrial, Laboratory & Oilfield Pressure Testing
$12518 $22760
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:57613837
Guranteed safe checkout
Product Description

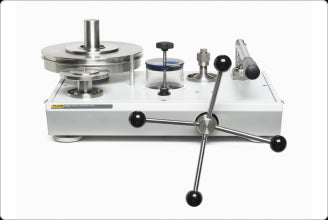

Product overview: Fluke Calibration P3100 Hydraulic Deadweight Testers
(Fluke Registration required before purchase. Please Laserman for more information on )
(item no. 4184880, 4184898, 4184906, 4184914, 4184923, 4184945, 4184950, 4184961, 4184977, 4184992, 4185007, 4185018, 4185029)
The P3100 models are available in single or dual piston format. Unit can be supplied in psi, bar, kgf/cm², and MPa. This robust instrument is highly accurate, quick and easy to use. Units feature a built-in priming pump for large volume applications, piston flotation indicators and a high quality screw press for fine pressure control.
Features
- Pressure ranges to 60,000 psi (4000 bar)
- 0.015% of reading accuracy standard (0.008% optional)
- Single or dual piston format
- Built-in hand pumps standard
- Mounted spirit level with adjustable feet
- Units can be trimmed to local gravity FOC
Models: Fluke Calibration P3100 Hydraulic Deadweight Testers
Fluke P3111-2
Fluke Calibration P3111-2 Hydraulic Deadweight Testers
Calibration Hydraulic Deadweight Testers
Calibration Hydraulic Deadweight Testers
Fluke P3111-1
Fluke Calibration P3111-1 Hydraulic Deadweight Testers
Calibration Hydraulic Deadweight Testers
Calibration Hydraulic Deadweight Testers
Fluke P3111-3
Fluke Calibration P3111-3 Hydraulic Deadweight Testers
Calibration Hydraulic Deadweight Testers
Calibration Hydraulic Deadweight Testers
Fluke P3111-4
Fluke Calibration P3111-4 Hydraulic Deadweight Testers
100 to 3,500 kPa
100 to 3,500 kPa
Fluke P3111-5
Fluke Calibration P3111-5 Hydraulic Deadweight Testers
0.1 to 3.5 MPa
0.1 to 3.5 MPa
Fluke P3112-1
Fluke Calibration P3112-1 Hydraulic Deadweight Testers
4 to 140 bar
4 to 140 bar
Fluke P3112-2
Fluke Calibration P3112-2 Hydraulic Deadweight Testers
4 to 140 kgf/cm²
4 to 140 kgf/cm²
Fluke P3112-3
Fluke Calibration P3112-3 Hydraulic Deadweight Testers
40 to 2,000 psi
40 to 2,000 psi
Fluke P3112-4
Fluke Calibration P3112-4 Hydraulic Deadweight Testers
400 to 14,000 kPa
400 to 14,000 kPa
Fluke P3112-5
Fluke Calibration P3112-5 Hydraulic Deadweight Testers
0.4 to 14 MPa
0.4 to 14 MPa
Fluke P3113-1
Fluke Calibration P3113-1 Hydraulic Deadweight Testers
10 to 350 bar
10 to 350 bar
Fluke P3113-2
Fluke Calibration P3113-2 Hydraulic Deadweight Testers
10 to 350 kgf/cm²
10 to 350 kgf/cm²
Fluke P3113-3
Fluke Calibration P3113-3 Hydraulic Deadweight Testers
100 to 5,000 psi
100 to 5,000 psi
Fluke P3113-4
Fluke Calibration P3113-4 Hydraulic Deadweight Testers
1,000 to 35,000 kPa
1,000 to 35,000 kPa
Fluke P3113-5
Fluke Calibration P3113-5 Hydraulic Deadweight Testers
1 to 35 MPa
1 to 35 MPa
General Specifications
| Pressure Ranges | |
| Oil operated | Ranges to 20,000 psi (1400 bar) |
| Accuracy | |
| Accuracy1 | ±0.015% of reading (±0.008% optional) |
| 1. Accuracy based on % of reading from 10% to 100% of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10% ± (accuracy class) x 10% of the piston range. | |
| Materials of Construction | |
| Standard weight material | Series 3 non-magnetic austenitic stainless steel |
| Weight density | 7.8 g/cm³ |
| Optional fractional weights | Solution heat treated aluminum |
| Weight density | 2.7 g/cm³ |
| Piston material | Tungsten carbide with nickel binder Density- 15.0 g/cm³ |
| Cylinder material | Hardened martensitic steel Tungsten carbide (water above 500 psi, 35 bar) |
| Thermal coefficients of expansion | Oil piston/cylinder 16.5 ppm/°C Water (above 500 psi, 35 bar) 11 ppm/°C |
| General | |
| Test port adaptors | 1/8, 1/4, 3/8 and ½ NPT or BSP |
| Instrument weight | 36 lbs (16 kg) |
| Instrument size (W x D x H) | 17.5 x 12 x 8.5 |
| Mass set weight (typical) | 80 lbs (36 kg) |
| Reservoir volume | 150 cc |
| Screw press displacement | 5.5 cc |
| Pump displacement | 4.7 cc per stroke |
| O-ring seal materials | Buna N as standard, Viton and EPDM available |
| Weight Increments | |
| Minimum standard weight increments | Up to 500 psi (35 bar): 1 psi (0.1 bar) 500 to 5000 psi (35 to 350 bar): 10 psi (1 bar) 5000 to 20,000 psi (350 to 1400 bar): 20 psi (2 bar) Model P3112: 1 psi (0.1 bar) |
| Optional fractional weights | Up to 500 psi (35 bar): 0.1 psi (0.01 bar) 500 to 5000 psi (35 to 350 bar): 1 psi (0.1 bar) 5000 to 20,000 psi (350 to 1400 bar): 2 psi (0.2 bar) |
| Operating Fluid | |
| Mineral oil | Shell spindle oil 22, our reference 55-655, viscosity 40 cs @ 20°C |
| Options | |
| PressCal software | Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments. |
| Fluids | Instruments can be supplied for use with Skydrol or brake fluids. Due to the aggressive nature of these fluids the standard nitrile seals and the acrylic reservoir tube will be replaced by either Viton or EPDM seals (as applicable) and an aluminum reservoir tube. For these or any other specialty fluid applications, please consult the factory. |
