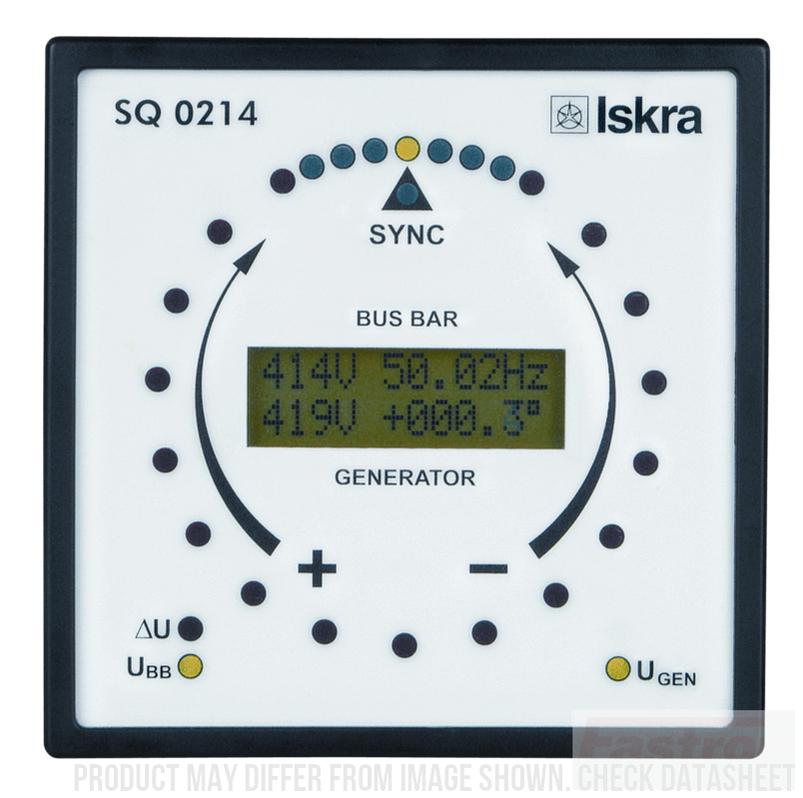

Iskra Doo 110VAC SQ0214 L110V RC N8SAO Synchroscope (Synchronoscope)
- Measurement of phase difference between bus bar and generator
- Five instruments in one (SQ 0x14)
- Circular display of ∆ phase difference
- Magnifield display of phase difference ∆ = ±20
- Microprocessor processing
- Simple synchronization conditions setting
- Output relay for synchronisation (pulse or continuous)
- ''Dead busbar or generator'' functionality
- Power supply from bus bar or generator
- Standard 96x96 mm or 144x144 mm din housing
- LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only)
- High immunity to EMC disturbances
- Special functions set with three jumpers inside the instruments Status output
- Green led for indication of both voltages
- Ship version (Bureau veritas certificate - SQ 02x4)
Specification
| Iskra Doo Part Number | SQ0214 L110V RC N8SAO |
| Function | Phase Difference (∆ϕ) Measurement |
| Nominal Voltage (Un) | 100VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz |
| Digital Output | Relay 250 V, 1 A, 50 Hz, 250 VA |
| Status Output | Open-Collector 24 Vdc + 20% @30mA |
| Switch On Delay Time Range | 0,1 ... 1 s +/-10% |
| Phase Difference Setting Range | 2 ... 20 °el ± 3 °el |
| Voltage Difference Setting Range | 1 ... 10 % +/-2.5% |
| Dead Busbar Noise Rejection Range | 10%, 20%, 30% or 40% |
| Power Consumption | < 4VA |
| Short Term Overload | 2 x Un for 3 seconds |
| LCD Display Accuracy | Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el |
| Synchronisation Accuracy | +/- 10% |
| Termination Style | Screw |
| Weight | 530g |
| Certification | CE |
| Factory Pack Qty | 1 |
| Material of housing | PC/ABS Unflammable, according to UL 94 V-0 |
| Enclosure protection | IP52 for case, IP20 for terminals with protective cover |
| Safety | According to EN 61 010-1 400 V, installation category III Pollution degree 2 |
| Operating Temperature | -20...55 °C |
Datasheet
Application Notes & Software Downloads
The following parameters can be set via internal jumper see for more details.
- Dead Busbar Generator Function
- Over and Under Frequency Synchronising
- Adjustable Lenght of a Sync Pulse
The following parameters Can be set via MIPack Comms Module & SQset Setting Software
- Relay - 300mS/Continuous/Programmable
- Dead Busbar - Active DB/Active DB + DG & % Threshold
