IEC C14 Appliance Inlet Connector - Black 3-Prong Power Plug with 1.5m 14AWG Wire (Max 8.5mm) - Perfect for Computer Power Supplies, Servers & Audio Equipment
$6.17 $11.22
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:12 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:61220267
Guranteed safe checkout
Product Description

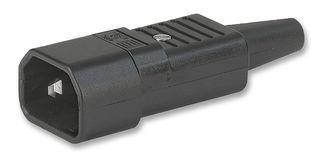

Schurter 4732.0000, IEC Appliance Inlet Type E(C14)/M, Black, for 3 x 1.5m sqr/14AWG Maximum wire size 8.5mm Type
Features
- Panel Mount : Snap-in Mounting from Front Side
- Appliance Inlet Type E/C14 Male Plug acc to IEC 60320-1
- Screw On Mounting
- 70 °C pin Temperature
Characteristics
- UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I
- Other Pin versions available on request
- Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1
Specification
| Schurter Part Number | 4732.0000 |
| Rated Voltage | 250V |
| Rated Current | 10A (CE) 15A (UL/CSA) |
| Operating Temperature | -25°C to 70°C |
| Mounting | Wire Screw Mount/Inlet |
| Material | Thermoplastic, black, UL 94V-0 |
| Termination Style | Type E(C14) Male to Screw Terminal |
| Cable Diameter | 8.5mm |
| Weight | 40g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP30 acc. to IEC 60529 |
| Isolation | 2kV |
| VDE/UL/CSA/CE/ROHS | Yes |
