Product Description

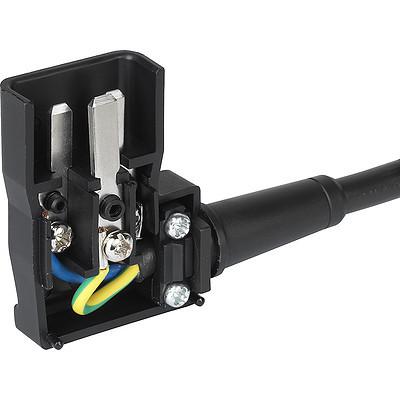

Schurter 4789.1100, IEC Appliance Outlet C20 Angled, Black, 16 Amp for 3 x 1.5m sqr/14AWG Maximum wire size 10.4mm
Features
- Panel Mount : Snap-in Mounting from Front Side
- Appliance Inlet C20 Plug acc to IEC 60320-1
- Screw On Mounting
- 70 °C pin Temperature
Characteristics
- UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I
- Other Pin versions available on request
- Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1
Specification
| Schurter Part Number | 4789.1100 |
| Rated Voltage | 250V |
| Rated Current | 16A (CE) 20A (UL/CSA) |
| Operating Temperature | -25°C to 70°C |
| Mounting | Wire Screw Mount/Outlet |
| Material | Thermoplastic, black, UL 94V-0 |
| Termination Style | C20/Screw Terminal |
| Weight | 40g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP30 acc. to IEC 60529 |
| Isolation | 2kV |
| VDE/UL/CSA/CE/ROHS | Yes |
