450NBBF Semiconductor Fuse 250VAC 450 Amp aR Class - High Current Protection for Industrial Equipment, Power Electronics, and Renewable Energy Systems
$57.36 $104.3
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:76399793
Guranteed safe checkout
Product Description

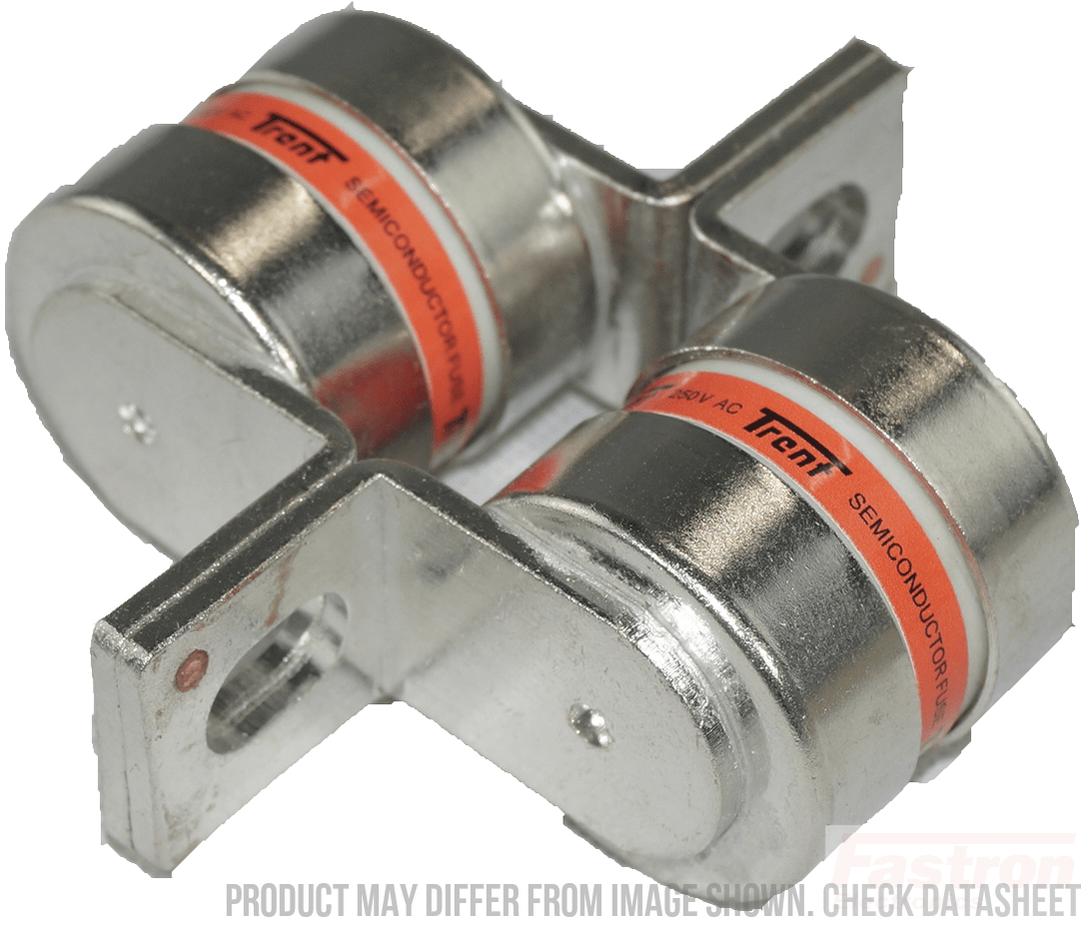

Trent 450NBBF Semiconductor I²t Fuse, 250VAC, 450 Amp, aR BS88 Style
Features
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1050 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 250 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse

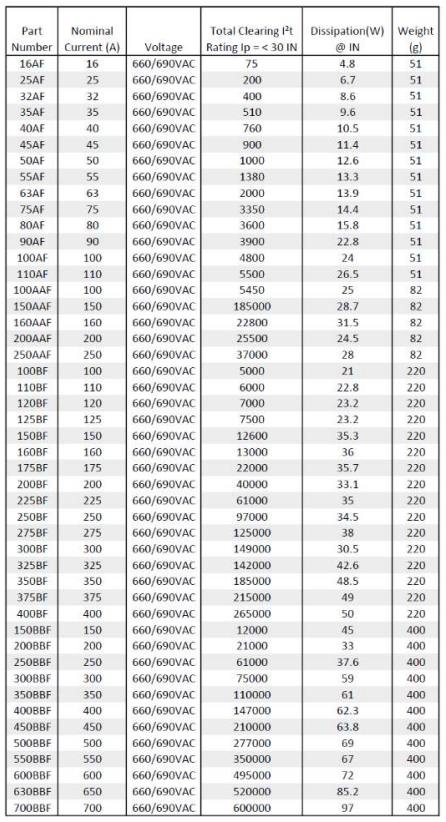

Specification
| Trent Part Number | 450NBBF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 250VAC @ 50Hz |
| I²t Rating | 80000 A²/s |
| Nominal Current (RMS + DC) | 450 Amp |
| Tested Breaking Capacity | 200kA @ 250VAC |

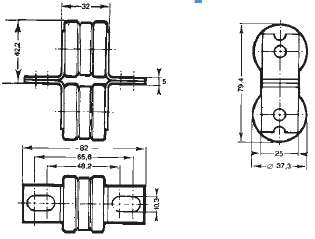

| Dimensions | 82 x 37.3 x 70.4mm |
| Hole Centers | 65.5 - 48.2mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 54W |
| Termination Style | M6 |
| Unit Weight | 170g |
| Factory Pack Qty | 10 |
