Product Description

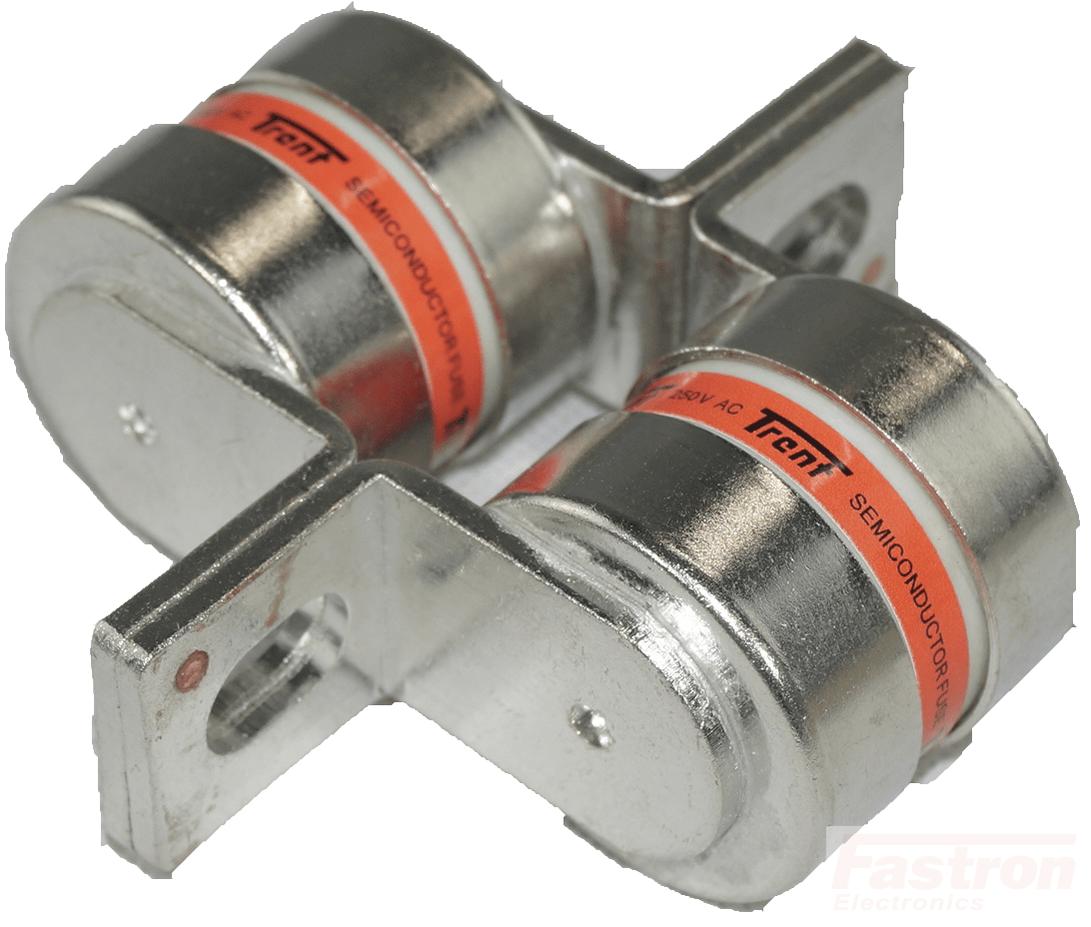

Trent 500NBBF, Semiconductor Fuse, 250VAC, 500 Amp I²t Fuse, aR BS88 Style
Features
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1050 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 250 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 500NBBF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 250VAC @ 50Hz |
| I²t Rating | 120000 A²/s |
| Nominal Current (RMS + DC) | 500 Amp |
| Tested Breaking Capacity | 100kA @ 250VAC |

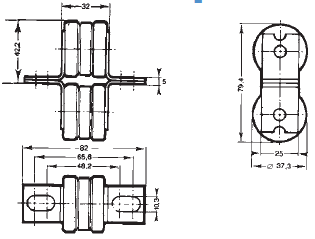

| Dimensions | 82 x 37.3 x 70.4mm |
| Hole Centers | 65.5 - 48.2mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 54W |
| Termination Style | M6 |
| Unit Weight | 170g |
| Factory Pack Qty | 10 |
