Product Description
Trent 150AAF Series 690V, 150 Amp aR Semiconductor I²t Fuse BS88 Style
Features
- Equivalent to Mersen 6.9 URT 217/150 C099960, Bussman 140EET, ETI BS17D/70/140A/690V
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1000 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 150AAF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (IP < 30IN) | 18500 A²/s |
| Nominal Current (RMS + DC) | 150 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |

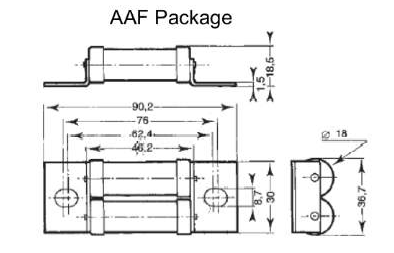

| Dimensions | 90.2 x 30 x 36.7mm |
| Hole Centers | 62.4 - 76mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 28.7W |
| Termination Style | M6 |
| Unit Weight | 61g |
| Factory Pack Qty | 10 |
