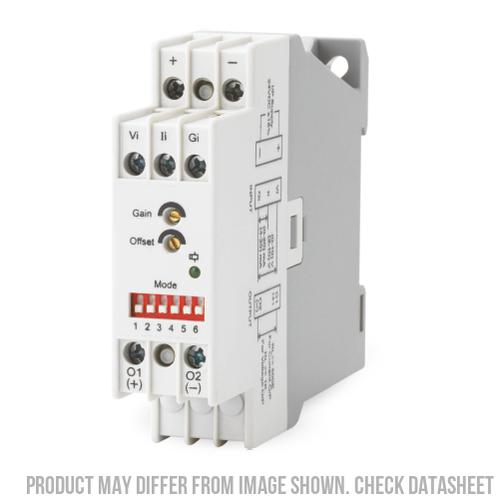

2SC3D11CC3 Signal Isolator/Conditioner - Selectable 0-10VDC/2-10V/4-20mA/0-20mA Input & Output, 24VDC Auxiliary Power - Ideal for Industrial Automation & Process Control Systems
$81.95 $149
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:19 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:78325351
Guranteed safe checkout
Product Description
GIC Controls 2SC3D11CC3, Signal Isolator/Conditioner, Selectable 0-10VDC/2-10V/4-20mA/0-20mA Input and Output, 24VDC aux
- Adjustable Zero and Span Setting
- 250mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space
Specification
| GIC ControlsPart Number | 2SC3D11CC3 |
| Control Output | Selectable 0-10VDC/2-10V/4-20mA/0-20mA |
| Input | Selectable 0-10VDC/2-10V/4-20mA/0-20mA |
| Over Range | x 1.2 |
| Operating Temperature | 0 - 55°C |
| Load Voltage | 24VDC |
| Span Adjustment Range | +/-10% |
| Zero Adjustment Range | +/-5% |
| Termination Style | Screw |
| Mounting Style | DIN Rail Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 170g |
| Factory Pack Qty | 1 |
