B514F 2T Single Phase Half Controlled Rectifier Bridge - 25A 480VAC for Industrial Power Supplies, Motor Controls & Electronic Equipment
$48.95 $89
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:80102078
Guranteed safe checkout
Product Description

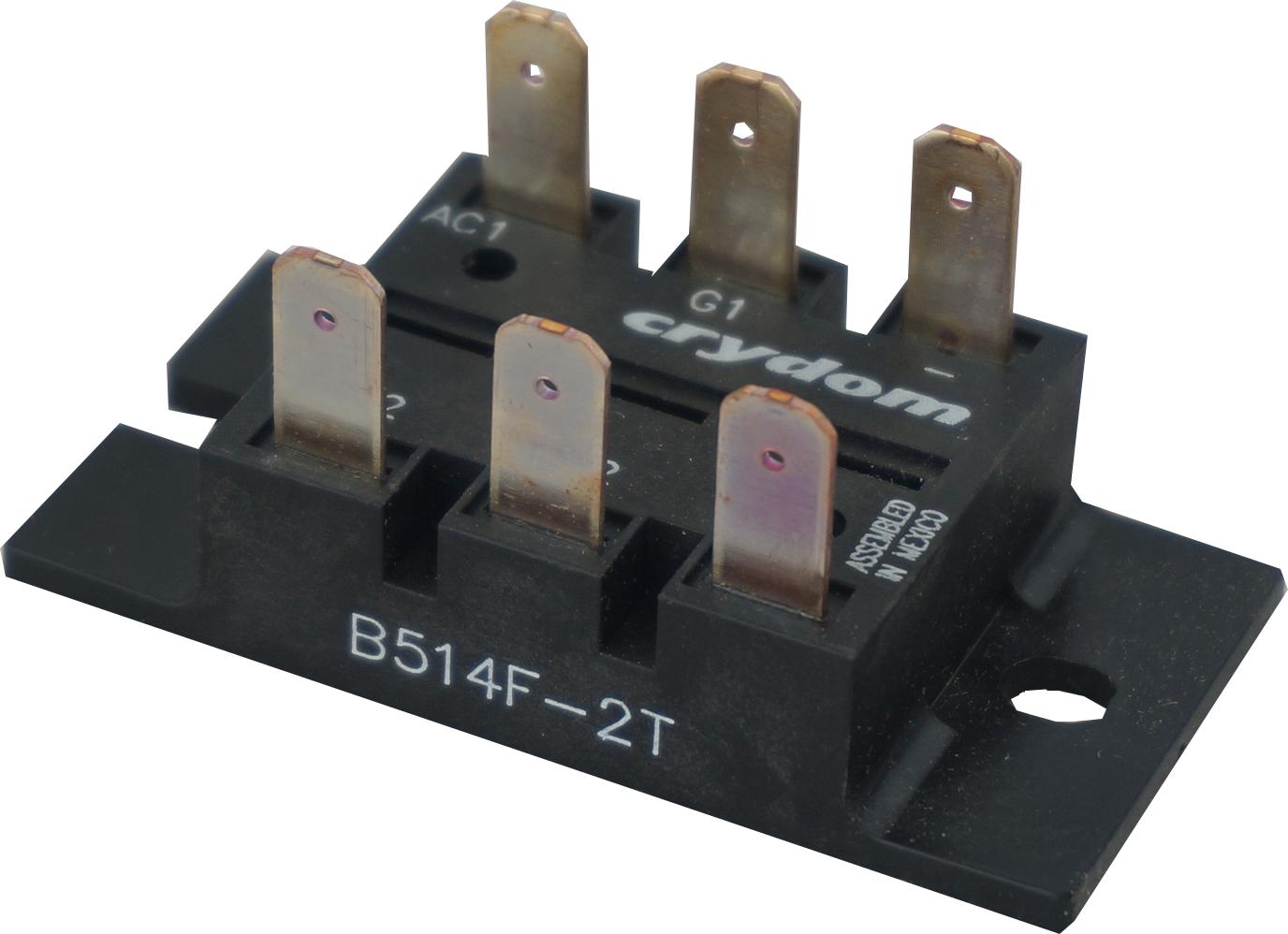

Crydom B514F-2T,Single Phase Half Controlled Rectifier Bridge, 25 Amp, 480VAC Line
Features
- For AC or DC Variable Voltage Output Up to 15KW
- Electrically insulated base plate
- Industrial standard package
- 2500V Isolation
- UL Recognized E72445
Applications
- Power Supplies
- Rectifier for drives applications
- Rectifiers for UPS
- Battery Chargers
Spec
| Crydom Part Number | B514F-2T |
| AC Line voltage | 480V |
| Device Configuration | Single Phase Half Controlled Rectifier Bridge |
| DC Output @ 85 Deg C | 25 Amp |
| Package Size | W:31.7mm L:63.5mm D:19.7mm |
| Itsm | 250 A |
| VF | 1.65V |
| Tj(max) | 125°C |
| rF | Not Published |
| Terminals | Faston (6.3mm) |
| Hole Centres | 48.2mm (M5) |
| Gate Terminals | Faston (6.3mm) |
| R th(j-c) | 0.9°C/W |
| R th(c-h) | Not Published |
| Weight | 42.5g |
| Isolation | 2.5kV |
| Factory Pack Qty | 20 |
| Certification | UL Listed |
| Crydom Headquarters | United States |
Datasheet
Alternatives
See or for higher rated equivalent
