50NAF Semiconductor Fuse 250VAC 50 Amp Fast-Acting aR Fuse for Circuit Protection - Perfect for Industrial Equipment, Power Supplies, and Electronic Devices
$8.69 $15.8
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:80746694
Guranteed safe checkout
Product Description
Trent 50NAF Series 690V, 50 Amp Semiconductor I²t Fuse, aR BS88 Style
Features
- Equivalent to Mersen 2.5 URGS 17/50 V076654, ETI BS17UQ/41/50A/240V 004750112
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1050 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 250 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 50NAF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 250VAC @ 50Hz |
| I²t Rating | 789 A²/s |
| Nominal Current (RMS + DC) | 50 Amp |
| Tested Breaking Capacity | 100kA @ 250VAC |

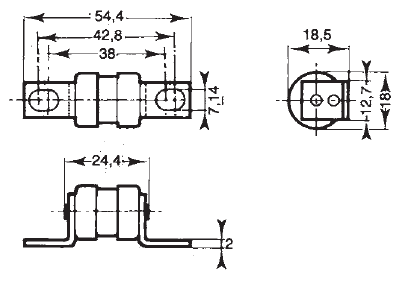

| Dimensions | 54 x 18mm |
| Hole Centers | 38 x 42.8mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 14W |
| Termination Style | M6 |
| Unit Weight | 30g |
| Factory Pack Qty | 10 |
