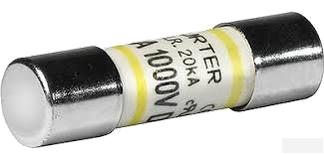

AEO 10.3x38 GpV Solar Fuse 15Amp, 1000VDC @ 20kA, 275VAC @ 10kA IEC 61730 2 - High Voltage Solar Panel Protection for PV Systems, Inverters, and Renewable Energy Applications
$7.64 $13.9
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:81805316
Guranteed safe checkout
Product Description
Schurter 8020.2051 AEO 10.3x38mm GpV Fast Blow Solar Fuse 15Amp, 1000VDC, 20kA, IEC 61730-2
Features
- Ratings up to 50 Amp
- Meets the new UL and IEC photovoltaic standards
- ROHS Compliant
- UL Recognized for 1000 VDC, and 275VAC
- High breaking capacity of 20 kA @ 1000 VDC, 10kA @ 175VAC
- Low min. interrupting rating of 1.35 x In
- Meets the requirements of IEC 61730-2 for PV module safety
Applications
- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Cross Reference
- Littlefuse SPF
- Busmann PV Fuse
- Mersen HP10M
- ASTM HV110
- SIBA 5021528
- ESKA 1038.800
- Hollyfuse HC10aR
Specification
| Schurter Part Number | 8020.2051 |
| Fuse Type | I²t GpV Class Fast Blow |
| Nominal Voltage | 1000VDC, 275VAC |
| I²t Rating (Pre-Arcing) | 488 A²/s |
| Nominal Current (DC) | 15 Amp |
| Tested Breaking Capacity | 20kA @1000VDC 10kA @ 275VAC |
| Dimensions | 10.3 x 38mm |
| Fuse Holder | |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 1W |
| DC Breaking Capacity | 20kA |
| Unit Weight | 8g |
| Approvals | ROHS, IEC, |
| Factory Pack Qty | 10 |
