Dual Solid State Relay 2 Pole 4-15VDC Control 2x40A 24-280VAC Load - Perfect for Industrial Automation, HVAC Systems & Power Control Applications
$69.44 $126.26
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:84155909
Guranteed safe checkout
Product Description

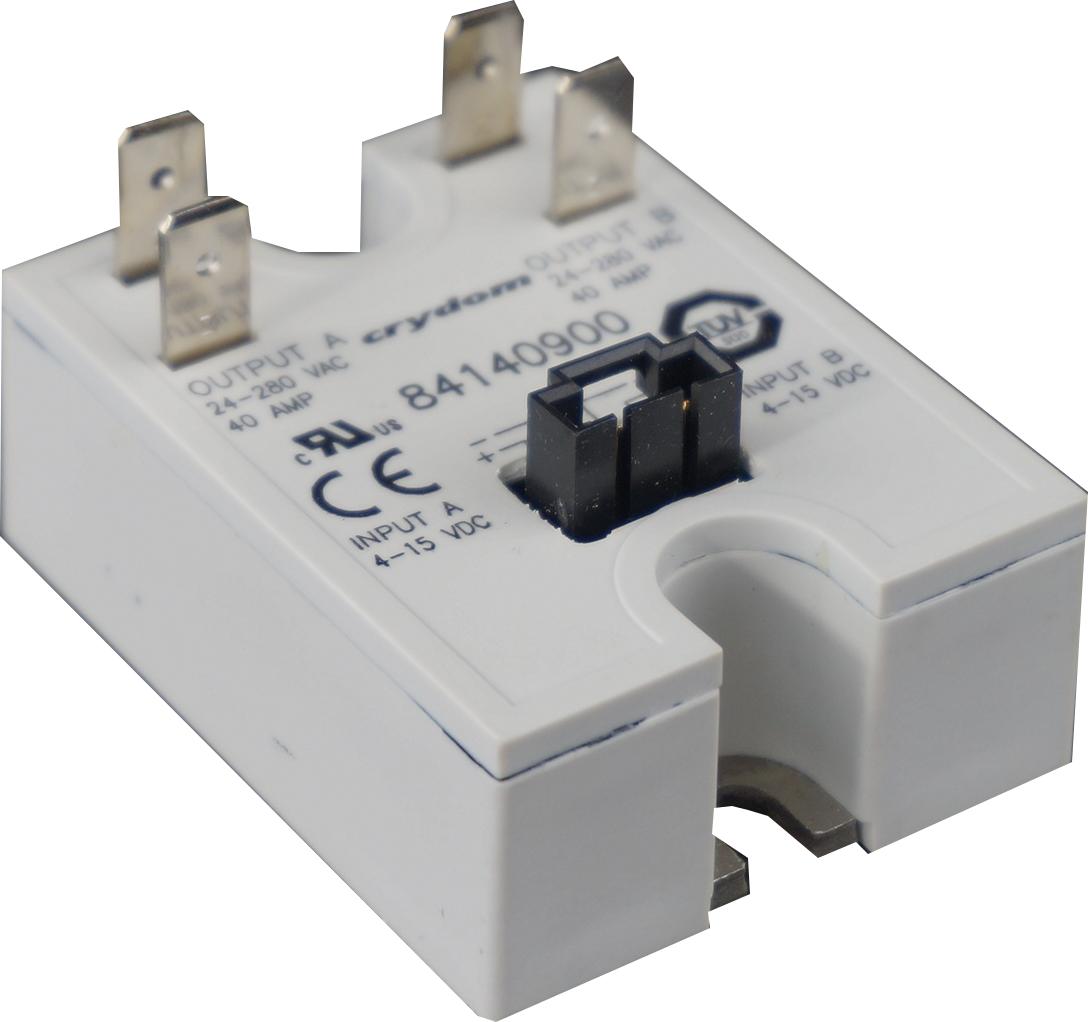

Crydom 84140900, Dual Solid State Relay, Two Pole 4-15VDC Control, 2 x 40A, 24-280VAC Load
Features
- Ratings from 2 x 25A to 2 x 40 Amp @ 24-530 VAC
- SCR output for heavy industrial loads
- Zero voltage or instantaneous turn-on outputs
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- AC & DC control types
- Direct bond copper substrate
- EMC compliant to Level 3
- Direct power lead frame
- Epoxy free design
Spec
| Crydom Part Number | 84140900 |
| Switching Type | Zero Crossing (Dual) |
| ROHS | Yes () |
| Control Voltage | 4-15VDC |
| Load Current | 2 x 40 Amp (rms) |
| Surge Capability | 597 Amp (peak) |
| Special Feature | Dual SSR |
| Mounting Style | Panel Mount |
| Load Voltage Range | 24-280VAC |
| EMC Compliant | Level 3 |
| Termination Style | Screw |
| Unit Weight | 75g |
| Factory Pack Qty | 20 |
Datasheet
Notifications
Please note Changes from Gen 3 to Gen 4 (current) package design
App Notes
- Effect of Forced Air Cooling
- Fuse Protection of SSR's
- Overvoltage Protection "P" Option MOV
- SSR Reliability Whitepaper
- 3 Phase Motors and Heating Applications
- 3 Phase Motor Reversing
- How to test a SSR
- SSR Precautions
- SSR Life Expectancy MTBF
- ROHS & Reach Statement
