Split Core AC Current Switch - 1-10A, 10-50A, 50-200A Multirange Self-Powered Sensor | ±10% Accuracy | 1.5A Trip Threshold | Normally Open Contacts | 1A@240VAC | for Industrial Equipment, HVAC Systems & Energy Monitoring
$25.85 $47
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:29 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:84461685
Guranteed safe checkout
Product Description

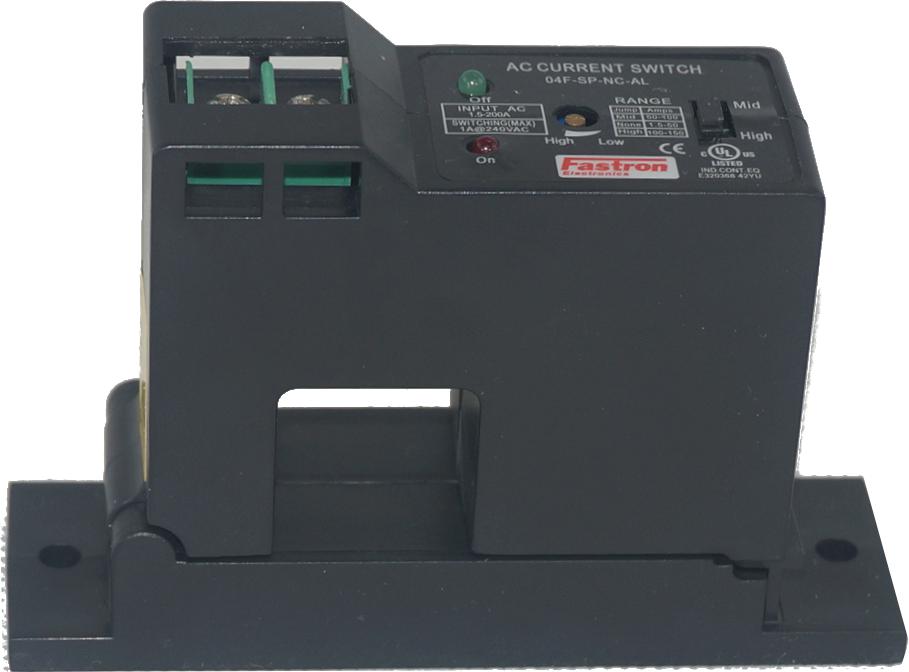

Fastron 04F-SP-NO-F(1.5A), Split Core AC Current Switch, Multirange 1-10A, 10-50A, 50-200Amp Self Powered, 10% Accuracy, Normally Open Contacts, 1Amp @ 240VAC Fixed 1.5 Amp Trip
Compact and versatile current switches for detection of AC Currents, Multirange 1-10Amp, 10-50Amp, 50-200Amp via jumper
Features
- Self Powered
- Multirange selector
- Panel mounting
- Eliminates insertion loss
- Isolated plastic case recognised according to UL94-V0
Advantages
- Highly accurate low current measurement down to 1Amp
- High isolation between primary and secondary circuits
- Easy installation
Applications
- Fault Detection
- Motor or Fan Protection
Application Domain
Energy and Automation
Specification
| Fastron Part Number | 04F-SP-NO-AL |
| Technology | Split Core AC Current Transformer |
| Alarm Type | NO Relay 1Amp @ 240VAC |
| Supply Voltage | Self Powered |
| Load Current (RMS) | Multirange 1-10A, 10-50A, 50-200Amp |
| Trip Point | Adjustable |
| Isolation | 2kV (AC, 50Hz, 1 min) |
| Bandwidth | 50/60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -25°C / 70°C |
| Accuracy | 10% (Minimum Threshold 1.5 +/-0.2 Amp) |
| Termination Style | Screw Terminals |
| Unit Weight | 200g |
| Certifications | UL E320368, CE, Rohs compliant |
Datasheet
