Product Description

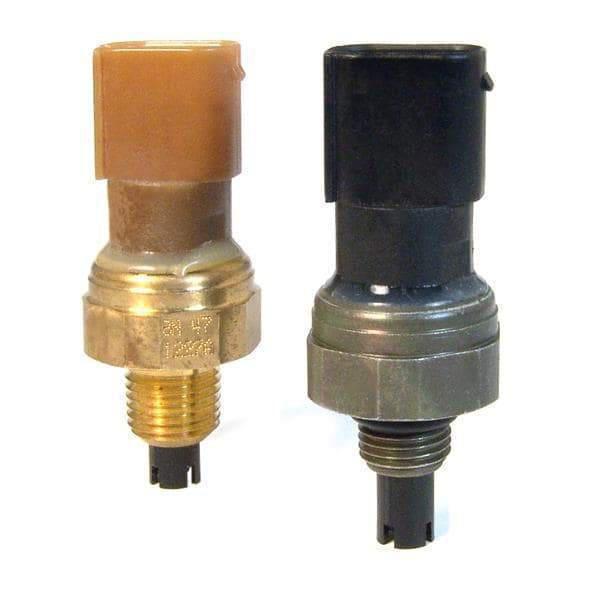

Kavlico (Sensata) 112CP3-9 Series Combined Pressure & Temperature Sensor
Features
- Temperature and Pressure Measurement in one Package
- Fast In Stream Temperature Measurement
- Precise Superheat Measurement
- Pressure Ranges 0-150psi through 0-650psi
- Excellent Linearity
- Wide Operating Temperature -55°C to 125°C
Applications
- Air Conditioning and Refridgeration
- Alternative Energy Management
- Engine Controls and Monitors
- Compressors and Pumps
Specification
Kavlico (Sensata) Part Number | 112CP3-9 |
| Pressure Range | 9-510psi |
| Thermistor Resistance Range | 10KΩ |
| Supply Voltage (Vcc) | 4.5 to 5.5 Vdc |
| Output Voltage | 0.5 to 4.5 Vdc typical |
| Supply Current | 15mA max |
| Output Current | 8mA |
| Output Load Range | 10KΩ to 50KΩ |
| Response Time | 10mS |
| Overvoltage Protection | 16 Vdc |
| Reverse Voltage | -14 Vdc |
| Pressure Connection | M12 x 1.25 - 6g plated steel |
| Internal Seal | Neoprene with no thread Oring |
| Life Cycle | 1 Million Cycles |
| Termination Style | 4 Pin AMP Micro-Quadlok System Connector |
| Unit Weight | 50g |
| Factory Pack Qty | 100 |
