3 Pcs Rogowski Coil Set - ART B22 D70 SP3 + AI P1A - 3 Phase AC Current Sensor, Class 1, 1 Amp, High Sensitivity & Wide Measurement Range, 7cm Diameter with 3M Integrator Cable - Perfect for Industrial Power Monitoring, Electrical Testing, and Energy Management Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:89531936
Product Description

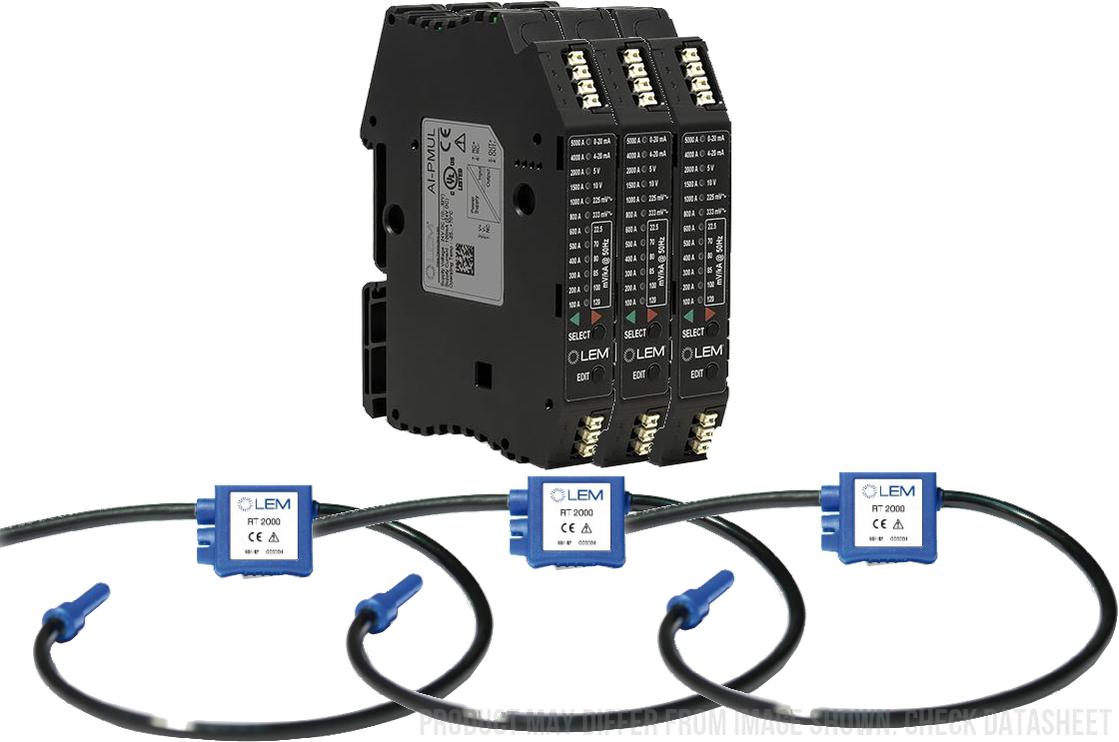

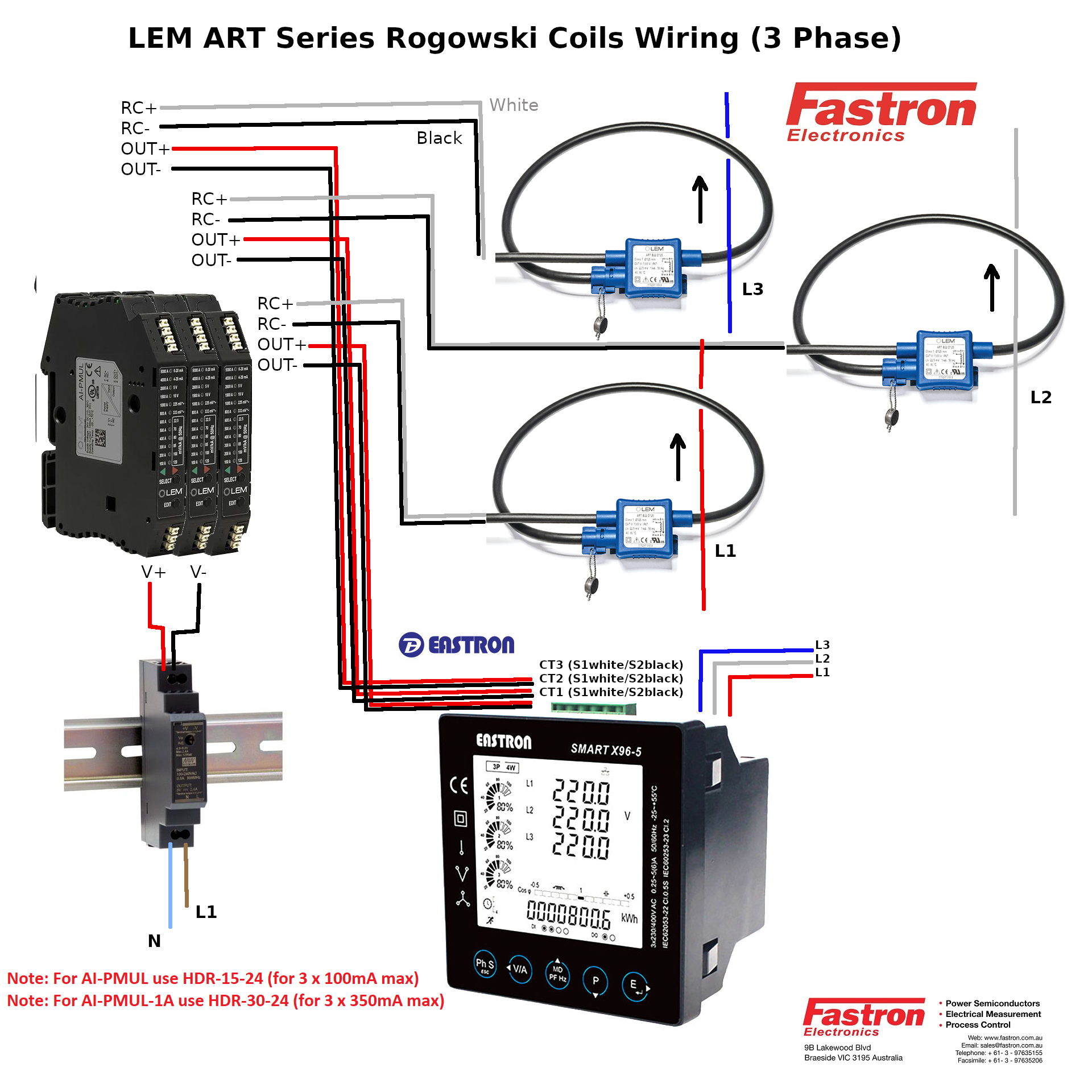

ART-B22-D70-SP3 + AI-P1A- 3 Pcs, 3 Phase Rogowski Coils & Universal Multi Range Integrator with Signal Conditioner
The universal Rogowski coil integrator AI-P1A complements LEM’s flexible clip-around coil ART and ARU range. The design is based on digital processing to give combined dynamic range, accuracy and versatility of use. It offers a wide range of output signals both RMS and instantaneous. AI-P1A is DIN rail mounted and can be stacked for multiphase application without spacing thanks to its low power dissipation.
Input signal
- Accuracy Class 1 (IEC 61869-2) [1].
- Linearity error ≤ 0.10 %. Protection degree IP2X.
- 35 mm DIN rail mounted.
- Push-in terminals.
- 1 Amp instantaneous output.
- 6 selectable sensitivities depending on Rogowski coil: 22.5, 70, 80, 85, 100, 120 mV/kA at 50 Hz.
- 12 selectable ranges: 100, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000, 4000, 5000 A.
Ambient operating temperature −25...+70 °C.
Advantages
- Compact design for DIN rail assembly
- High accuracy Class 1 (IEC 61869-2)
- Setup by user via Select / Edit buttons
- Clear status indication via bi-color led
Applications
- MV/LV substations on LV side: Transformer Condition Monitoring
- Power metering: current measurement for active power calculation
- Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation
- Power quality monitoring: electrical loads and distribution system equipment
- Fault Detection, Isolation and Repair (FDIR): isolate the site of the fault
- Remote Terminal Units (RTU)
- Phasor Measurement Units (PMU)
Standards
- IEC 61010-1: 2010
- UL
- EMC: IEC 61326-1:2012
Included Options
: side contacts to stack up to 3 Integrator modules and use only one power supply.
Specification
| LEM Part Number | ART-B22-D70-SP3 + AI-P1A- 3 Pcs |
| Function | 3 Phase AC Current Measurement |
| Measuring Range | Selectable 5000,4000,2000,1500,1000,800,600,500,400,300,200,100Amp |
| Sensitivity | Selectable 22.5,70,80,85,100,120mV/kA @ 50 Hz |
| Output | 1 Amp output |
| Frequency Measuring Range | 50-1500Hz (15th Harmonic) |
| Operating Voltage | 10-32VDC |
| Accuracy | 1% from 25 to 5000 Amp |
| Current Consumption | 100mA (max) |
| Dimensions | 100mm x 78mm x 15mm (Integrator), 7cm Diameter (Coils) |
| Mounting | Din Rail Mount |
| Integrator to Coil cable | 3M Twisted and Screened |
| Integrator to Meter cable | User Supplied Shielded cable 1.5mm sqr, up to 6m long |
| Operating Temperature | -25°C - 70°C |
| Storage Temperature | -45°C to 80°C |
| Isolation (50Hz, 1 min) | 1.5kV |
| True RMS Response Time | 160-190ms |
| Termination Style | Push-in for 1.5mm sqr wire |
| Weight | 58g |
| Factory Pack Qty | 1 |
| Certifications | UL, ROHS |
Datasheet
Applicaton Notes
1) The Rogowski coil can measure any primary current as there is no saturation effect.
2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts)
3) Frequency bandwidth and phase shift modelling schematic can be provided on request.
4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer)
5) Considering a primary conductor of at least ⌀ 15 mm, perpendicular and in contact with the Rogowski coil.
6) Considering an external conductor of at least ⌀ 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.
