Fluke Amprobe AF-600A Cable and Ground Fault Locator - 600A AC Current Clamp - Detect Underground Wire Faults for Electrical Safety Inspections & Utility Maintenance

Product Description

(Fluke Registration required before purchase. Please contact Laserman for more information on +61 8 9335 1718)

• Optional accessory for Amprobe UAT-600 Underground Utilities Locator Series
• Works in conjunction with the UAT-600-T Transmitter
• Locate cable and wires ground faults, sheath faults or pipeline coating defects (direct contact of the utility with the ground is required to pinpoint a fault)
• Used to find the point where metal is touching the ground (shield is rusted/rubber buffer is broken) and power is leaking, creating noise on a cable
• Find the point of leakage around a cable (ground faults are common problems with electric cables) – saves money by pinpointing leakage point
• Adjustable volume control
• Advanced technology and digital signal processing makes pinpointing process fast, accurate and unambiguous:
  • 1. Compass guidance with numeric fault field strength indicates direction to the place of the fault
    2. Distance sensitive left/right guidance guides the user to precisely follow the path of the buried utility
    3. Automatic gain control quickly detects tracing signal and precisely adjust A-Frame sensitivity

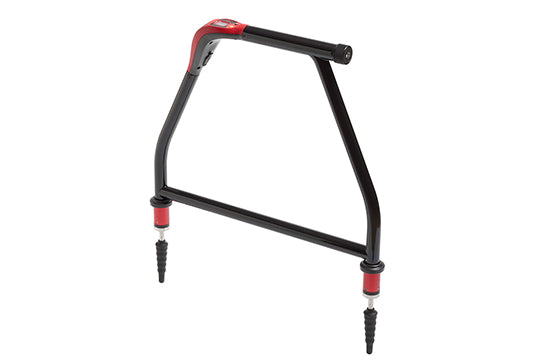

The AF-600 A-Frame cable ground fault finder is specifically designed for the Amprobe UAT-600 Underground Utilities Locator Series. In combination with the UAT-600 Transmitter, it will pinpoint the place where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground. It can also detect other conductors to ground faults such as pipeline coating defects.

Specifications

Features	AF-600 A-Frame
Tracing mode (de-energized)	8 kHz
Locating mode	Ground fault locating
Sensitivity (typical)	Cable locate mode at 1 meter depth: 10 uA Fault locate mode: up to 2 MΩ fault
Display backlight	Automatic
Audio indication	Speaker indicates left/right by pulsed/continuous tone
Compatible transmitter	UAT-600-T Transmitter
Display	1.28 in, 128 x 128 BW outdoor LCD display with auto backlight
Update rate	Instantaneous
Operating temperature and humidity	-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity	-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
Water and dust resistance	IP54
Drop proof	3.28 ft (1 m)
Power supply	(6) 1.5 V AA alkaline batteries
Auto power off	15 minutes idle
Battery life	Approx. 60 hours at 70 °F (21 °C) (Typical)
Agency approval
Safety compliance	IEC 61010-1 CSA/UL 61010-1
Size (H x W x L)	Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)
Weight	Approx. 4.2 lb (1.9 kg) (batteries installed)
