Product Description

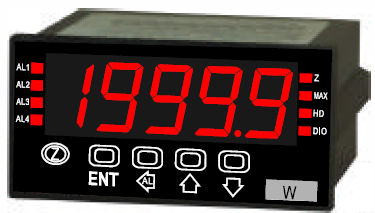

Fastron Electronics AM5H-A-DV1-AR4AN, 96x48mm DC Ammeter DC Voltmeter 0-50mVDC with 4-20mA output, 4 x Relays, 100-240VAC/DC Supply, Digital Panel Meter & Transmitter, 5 Digit
- Adjustable Zero and Span Setting
- Adjustable Display Scaling
- Large 5 Digit 20.3mm (8 Inch) LED Display
- 250mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- Each unit needs just 96 x 48mm Panel Space
- 90mm Depth
Specification
| Fastron Electronics Part Number | AM5H-A-DV1-AR4AN |
| Conditioner Output | 4-20mA |
| Alarms | 4 x Hi/Low, 7 Amp @ 277VAC |
| Input | 0 - 50mVDC |
| Over Range | x 1.5 |
| Operating Temperature | 0 - 60°C |
| Load Voltage | 100-240VAC/DC |
| Span Adjustment Range | +/-10% |
| Zero Adjustment Range | +/-5% |
| Display Type | 5 Digit RED LED |
| Termination Style | Screw |
| Mounting Style | 96 x 48mm Panel Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 320g |
| Factory Pack Qty | 1 |
