AM5A A DV1 A Digital DC Ammeter & Voltmeter - 48x96mm Panel Meter with 50mV Input, 110-240VAC Power Supply & Relay Alarm for Industrial Equipment, Solar Systems, and Electrical Monitoring
$120.45 $219
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:27762728
Guranteed safe checkout
Product Description

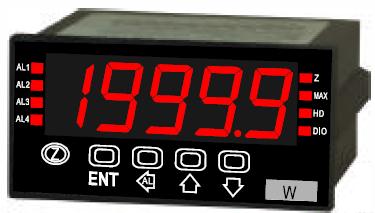

Fastron Electronics AM5A-A-DV1-A DC Ammeter DC Voltmeter & Transmitter
- Adjustable Zero and Span Setting
- Adjustable Display Scaling
- Large 5 Digit 20.3mm (8 Inch) LED Display
- 250mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- Each unit needs just 96 x 48mm Panel Space
- 90mm Depth
Specification
| Fastron Electronics Part Number | AM5A-A-DV1-A |
| Alarm Output | 1 x High or Low C/O Relay Alarm with Reset |
| Input | 0 - 50mVDC |
| Over Range | x 1.5 |
| Operating Temperature | 0 - 60°C |
| Supply Voltage | 110- 240VAC |
| Span Adjustment Range | +/-10% |
| Zero Adjustment Range | +/-5% |
| Termination Style | Screw |
| Mounting Style | 96 x 48mm Panel Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 320g |
| Factory Pack Qty | 1 |
