Fluke Amprobe AT-8030 INT Advanced Wire Tracer Kit - Professional Electrical Circuit Tracer for Home & Industrial Wiring Diagnosis | Perfect for Electricians, DIY Repairs & Network Cable Tracing
$27.5 $50
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:56989614
Guranteed safe checkout
Product Description

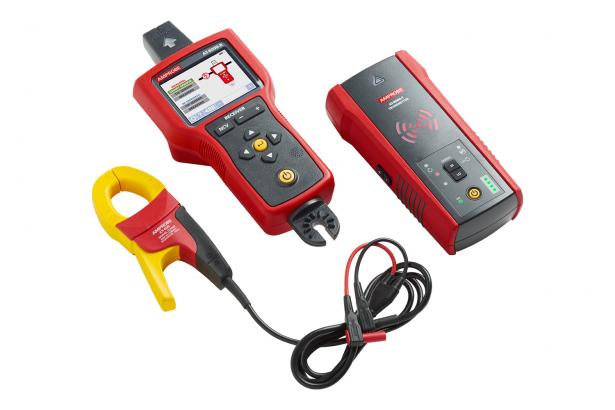

Fluke Amprobe AT-8030-INT Advanced Wire Tracer Kit
(item no. 5238889)
Key features
- Work directly on an energized circuit without the need to take equipment offline, CAT IV 600 V rated
- Save time searching for wires hidden behind walls, ceilings and floors with the Smart Sensor™, which displays the location and orientation of energized wires
- Pinpoint wire location with the large color LCD Receiver screen
- Identify breakers and fuses, as well as the location of a break, open or short
- Non-Contact Voltage Detection utilizes passive tracing without the Transmitter to verify if a wire is energized
- Includes the CT-400 Signal Clamp accessory for inducing a tracing signal on the cable when there is no access to bare conductors
Product overview: Amprobe AT-8030 Advanced Wire Tracer Kit
Designed to keep electricians safe - CAT IV 600 V rated for the highest protection available on any wire tracer. Electricians are protected from the most dangerous level of transient overvoltage spikes up to 8,000 V that are known to occur in industrial environments.
Save time, no blind searching - See hidden wires like never before with the AT-8000-R Receiver’s patented Smart Sensor™, which finds and displays the location and orientation of energized wires in walls, floors and ceilings on the large color TFT LCD screen. The Scan and Locate feature clearly identifies the single correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools. Embedded help screens make set-up easy and error free for novice users and experts alike.
Product Highlights
- Trace Energized and De-energized wires in walls, ceilings, floors and tight spaces
- Identify breakers and fuses
- Pinpoint shorts and opens
- Non-contact voltage mode and passive tracing
- High resolution 3.5″ TFT LCD color display
- Three Transmitter power modes: “High Signal” mode for normal circuits, “Low Signal” mode for precision tracing in difficult areas and “Loop” mode for closed loop de-energized circuits
- Two automatically selected frequency modes for optimal tracing on energized and de-energized circuits
- Embedded help screens for easy, error free set-up
- Comes with custom Amprobe hard carrying case, signal clamp, test leads and accessories and rechargable batteries
Specifications: Amprobe AT-8030 Advanced Wire Tracer Kit
| AT-8000-R Receiver | AT-8000-T Transmitter | CT-400 Signal Clamp | |
|---|---|---|---|
| Display size | LCD 3.5 in (89 mm) | LEDs | N/A |
| Display dimensions (W x H) | 2.76 x 2.07 in (70 x 52 mm) | N/A | N/A |
| Display Resolution | 320 x 240 | N/A | N/A |
| Display type | Color TFT LCD | LEDs | N/A |
| Display color | Yes | Operating mode LEDs: red Battery status LEDs: green, yellow, red | N/A |
| Booting time | 30 sec | < 2 sec | N/A |
| Operating temperature | -4 °F to 122 °F (-17.77 °C to 49 °C) | -4 °F to 122 °F (-20 °C to 50 °C) | 32 °F to 122 °F (0 °C to 50 °C) |
| Operating humidity | 45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) | 45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) | 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to <122 °F (40 °C to <50 °C) |
| Operating altitude | 0 to 6561 ft (2000 m) | ||
| Transient protection | N/A | 8.00 kV (1.2/50μS surge) | N/A |
| Pollution degree | 2 | ||
| IP rating | IP 52 | IP 40 | |
| Drop test | 3.28 ft (1 m) | ||
| Power supply | 4 x AA (alkaline) | 8 x AA (alkaline) | N/A |
| Power consumption (typical) | 4xAA battery: 2W | Hi mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA | N/A |
| Battery life | Approx. 9 h | Hi mode: approx. 25 h Loop mode: approx. 18 h | N/A |
| Low battery indication | Yes | N/A | |
| Fuse | N/A | 1.6 A, 700 V, fast-acting, Ø 6x32mm | N/A |
| Maximum conductor size | N/A | N/A | 1.26 in (32 mm) |
| Dimensions (L x W x H) | Approx. 10.92 x 4.43 x 2.55 in (27.75 x 11.25 x 6.5 cm) | Approx. 7.2 x 3.66 x 1.97 in (18.3 x 9.3 x 5 cm) | Approx. 5.9 x 2.75 x 1.18 in (15 x 7 x 3 cm) |
| Weight | Approx. 1.20 lb (0.544 kg) | Approx. 1.25 lb (0.57 kg) | Approx. 0.25 lb (0.114 kg) |
| Features | TL-8000-INT |
|---|---|
| Measurement category | CAT IV 600 V (test leads) CAT IV 600 V (alligator clips) CAT II 300 V (outlet adapters) |
| Operating voltage and current | 600 V, 10 A max. (red/black leads) 600 V, 6 A max. (green lead) 600 V, 10 A max. (alligator clips) 300 V, 10 A max. (outlet adapters) |
| Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Operating Humidity | 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to <122 °F (40 °C to <50 °C) |
| Storage temperature and humidity | -4 °F to 140 °F (-20 °C to 60 °C), <95% RH |
| Operating altitude | 0 to 6561 ft (2000 m) |
| Pollution degree | 2 |
| Water and dust resistance | IP 20 |
| Drop proof | 3.28 ft (1 m) |
| Dimensions | Red/black leads: 3.28 ft (1 m) Green lead: 22.97 ft (7 m) Alligator clips: approx. 3.74 x 1.77 x 0.94 in (95 x 45 x 24 mm) Outlet adapters: 2.83 x 0.71 x 0.71 in (72 x 18 x 18 mm) |
| Weight | Approx. 0.88 lb (0.4 kg) |
Models: Amprobe AT-8030 Advanced Wire Tracer Kit
Includes:
- AT-8000-R Receiver
- AT-8000-T Transmitter
- TL-8000 Test lead and accessory kit*
- CC-8000 Hard carrying case
- HS-1 Magnetic Hanger
- 12 x 1.5 V AA batteries
- CT-400 Signal clamp
- User Manual and Quick Reference Guide
* TL-8000 test lead and accessory kit includes:
- 2 x 1 m test leads (red, black)
- 1 x 7 m test lead (green)
- 2 x alligator clips (red, black)
- 2 x outlet blade adapters (red, black)
- 2 x outlet round adapters (red, black)
