Fluke Amprobe AT-6030 INT Advanced Wire Tracer Kit - Professional Electrical Circuit Tracer for Home & Industrial Wiring - Perfect for Electricians, DIY Projects, and Electrical Troubleshooting
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:87927242
Product Description
(item no. 5238892)
Key features
- Work directly on an energized circuit without the need to take equipment offline
- Save time searching for energized and de-energized wires hidden behind walls, ceilings and floors
- Pinpoint wire location with the large color LCD Receiver screen featuring four unique modes
- Identify breakers and fuses, as well as the location of a break, open or short
- Non-Contact Voltage Detection utilizes passive tracing without the Transmitter to verify if a wire is energized
- Includes the CT-400 Signal Clamp accessory for inducing a tracing signal on the cable when there is no access to bare conductors

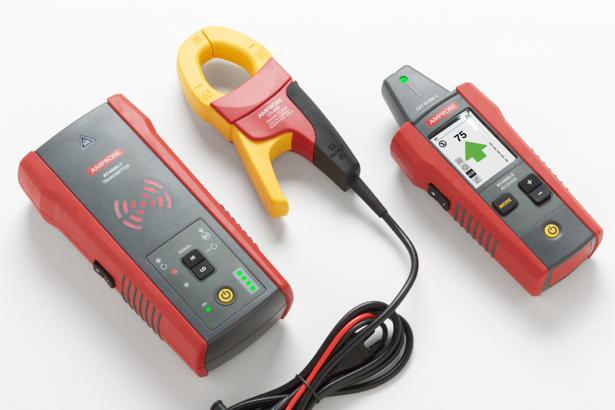

Product overview: Amprobe AT-6030 Advanced Wire Tracer Kit
A Receiver and powerful Transmitter are combined in this kit, designed to locate energized and de-energized wires, breakers, and fuses without having to disconnect any equipment. The Receiver features four tracing modes optimized for a range of applications. Its fully automatic breaker tracing capability saves time and eliminates the confusion of multiple false positives by detecting the highest recorded signal in a breaker or fuse. The Transmitter utilizes two optimized frequencies that allows for a clean and reliable signal. The Signal Clamp can be used in applications where there is no access to bare conductors by enabling the Transmitter to induce a signal into a wire through insulation. Whether you’re a novice user or an expert, the AT-6030 Amprobe Advanced Wire Tracer kit will help you get the job done fast.
Product Highlights
- Traces wires in walls, ceilings, floors and corners
- Locates breakers and fuses
- Pinpoints shorts and opens
- High resolution 2.5″ TFT LCD color display
- Three Transmitter signal modes: “High Signal” mode for normal circuits, “Low Signal” mode for precision tracing in difficult areasand “Loop” mode for closed loop de-energized circuits
- Four Receiver tracing modes: “Quick Scan” mode allows for quick wire detection at a longer distance, “Precision” mode precisely pinpoints wires or faults located behind walls, floors, or ceilings, “Breaker Identification” mode facilitates quick and easy breaker locating and “Non-Contact Voltage Detection” mode utilizes passive tracing without the Transmitter to verify if a wire is energized
- Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
- Comes with custom Amprobe hard carrying case, signal clamp, test leads and accessories
Specifications: Amprobe AT-6030 Advanced Wire Tracer Kit
| AT-6000-R Receiver | AT-6000-T Transmitter | CT-400 Signal Clamp | |
|---|---|---|---|
| Measurement Category | CAT III 600 V | CAT III 600 V | CAT IV 600 V, CAT III 1000 V |
| Operating voltage | 0 to 600 V AC/DC | 0 to 600 V AC/DC | 0 to 1000 V AC |
| Operating frequency | Energized: 6.25 kHz De-Energized: 32.768 kHz | Energized: 6.25 kHz De-Energized: 32.768 kHz | Wire tracing: 32.768 kHz AC current measurement: 45 Hz to 400 Hz |
| Hazardous voltage detection | See NCV detection | > 30 V AC/DC | N/A |
| Signal indications | Numeric, bar graph display and audible beep | LEDs and audible beep | N/A |
| Response time | Tip Sensor (energized/de-energized): 500 MS NCV: 500 MS Battery voltage monitoring: 5 sec | Line voltage monitoring: 1 sec Battery voltage monitoring: 5 sec | Instantaneous |
| Current output of signal (typical) | N/A | Energized circuit: HI mode: 60 mA RMS LO mode: 30 mA RMS De-energized circuit: HI mode: 130 mA RMS LO mode: 40 mA RMS Loop mode: 160 mA RMS | 1 mA/A for AC current measurement with multimeter |
| Signal voltage output (nominal) | N/A | De-energized circuit: LOW: 29 V RMS, 120 Vp-p HIGH: 33V RMS, 140 Vp-p With CT-400: loop model: 31 V RMS, 120 Vp-p | De-energized circuit: 2.4 V RMS, 24 Vp-p |
| Range detection (open air) | Tip sensor (Energized): Max distance via air: up to 20 ft (6.1 m) Pinpointing: approx. 1.97 in (5 cm) Tip sensor (De-energized): Max distance via air: up to 14.7 ft (4.5 m) Pinpointing: approx. 1.97 in (5 cm) NCV detection (40 to 400 Hz): Max. sensitivity: 90 V up to 6.56 ft (2 m) Min. sensitivity: 600 V up to 0.39 in (1 cm) | N/A | N/A |
Models: Amprobe AT-6030 Advanced Wire Tracer Kit
Includes:
- AT-6000-R Receiver
- AT-6000-T Transmitter
- TL-6000 Test lead and accessory kit*
- CC-6000 Soft carrying case
- 12 x 1.5 V AA batteries
- CT-400 Signal clamp
- User Manual and Quick Reference Guide
* TL-6000 test lead and accessory kit includes:
- 2 x 1 m test leads (red, black)
- 1 x 7 m test lead (green)
- 2 x alligator clips (red, black)
- 1 x US Socket adapter
