96x48mm Digital Voltmeter 0-300VAC with 0-10V Output, 22-60VAC/DC Auxiliary Power, 5-Digit Display - Perfect for Industrial Equipment, Power Distribution Systems, and Electrical Testing
$161.7 $294
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:58382439
Guranteed safe checkout
Product Description

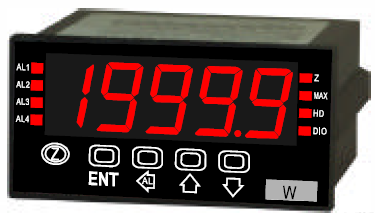

Fastron Electronics AM5H-A-A-V6-D-NVN, 96x48mm Digital Voltmeter 0-300VAC with 0-10V output, 22-60VAC/DC Aux Digital Panel Meter & Transmitter, 5 Digit
- Adjustable Zero and Span Setting
- Adjustable Display Scaling
- Large 5 Digit 20.3mm (8 Inch) LED Display
- 250mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 0-10V output (for voltage output type)
- Each unit needs just 96 x 48mm Panel Space
- 90mm Depth
Specification
| Fastron Electronics Part Number | AM5H-A-A-V6-D-NVN |
| Conditioner Output | 0-10V (Average RMS) |
| Input | 0 - 300VAC |
| Over Range | x 1.5 |
| Operating Temperature | 0 - 60°C |
| Supply Voltage | 22-60VAC/DC |
| Span Adjustment Range | +/-10% |
| Zero Adjustment Range | +/-5% |
| Display Type | 5 Digit RED LED |
| Termination Style | Screw |
| Mounting Style | 96 x 48mm Panel Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 320g |
| Factory Pack Qty | 1 |
