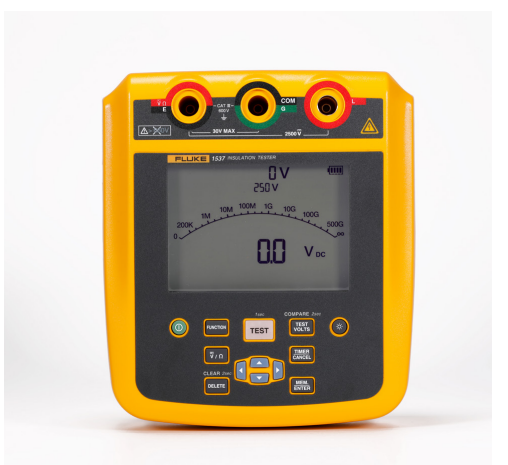

Fluke 1535 & 1537 Digital Insulation Resistance Tester - Professional Electrical Safety Meter for Industrial Maintenance, HVAC Systems, and Power Equipment Testing

Product Description

(item no. 5304189, 5304192)

Perform tests quickly, safely and accurately Periodic insulation tests are mandatory to verify the integrity of coils and cables in motors, transformers, switchgears and electrical devices to ensure safety of personal and assets. Fluke 1535 and Fluke 1537 performs accurate and fast insulation test, also provide advanced functions like ramp voltage, polarity index, dielectric absorption ratio, and dielectric discharge (Fluke 1537) test, which help to effectively find defects such as insulation breakdown and severe overheating and equipment ageing.

Features:

•  Ultra-large LCD display
•  Digitalised insulation test with analogue bar graph
•  Preset test voltage: 250 V, 500 V, 1000 V, 2500 V
•  Insulation measurement: 200 kΩ to 500 GΩ
•  Polarity index (PI)
•  Dielectric absorption ratio (DAR)
•  Automatic power off after 10 minutes of inactivity

Unique features of Fluke 1537:

• ACV / DCV / resistance measurement
• Adjustable testing voltage: 250 V to 2500 V with step of 100 V
• Dielectric discharge (DD)
• Ramp mode to linearly increase test voltage (100 V/s)
• User definable tags, timed tests, and measurement results storage
• Breakdown voltage indicator
• Mini USB interface used to download measurement data
• PC software
