AM5H A DV5 AR2NN Digital Voltmeter 0-36VDC - 96x48mm 5-Digit Display with 2 Relay Alarms (20-60VDC Power Supply) - Perfect for Industrial Equipment, Solar Systems & Automotive Electrical Testing
$156.2 $284
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:72351381
Guranteed safe checkout
Product Description

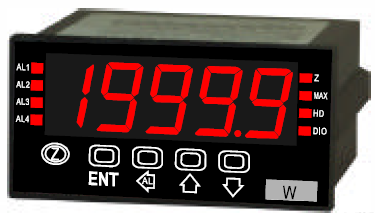

Fastron Electronics AM5H-A-DV5-AR2NN, 96x48mm Digital Voltmeter 0-36VDC, 2 Relay Alarms, 20-60VDC supply, 5 Digit
- Adjustable Zero and Span Setting
- Adjustable Display Scaling
- Large 5 Digit 20.3mm (8 Inch) LED Display
- 250mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
- Each unit needs just 96 x 48mm Panel Space
- 90mm Depth
Specification
| Fastron Electronics Part Number | AM5H-A-DV5-AR2NN |
| Conditioner Output | N/A |
| Alarm Outputs | 2 x Relays 7 Amp @ 277VAC |
| Input | 0 - 36VDC |
| Over Range | x 1.5 |
| Operating Temperature | 0 - 60°C |
| Load Voltage | 20-60VDC |
| Span Adjustment Range | +/-10% |
| Zero Adjustment Range | +/-5% |
| Display Type | 5 Digit RED LED |
| Termination Style | Screw |
| Mounting Style | 96 x 48mm Panel Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 320g |
| Factory Pack Qty | 1 |
