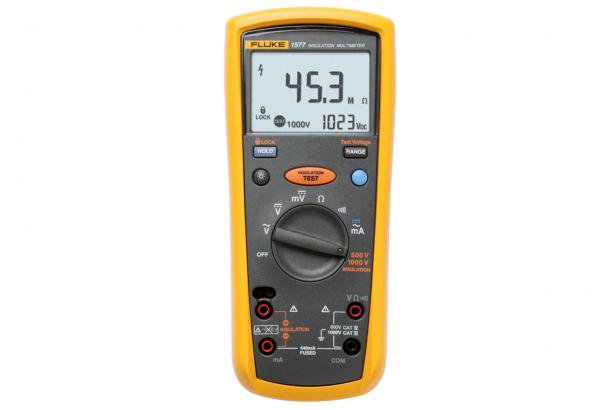

Fluke 1577 Insulation Multimeter - Digital Clamp Meter with True RMS, 1000V AC/DC Voltage Tester (Item# 2157280) - Perfect for Electricians, HVAC Technicians & Industrial Maintenance
$1021.35 $1857
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:92496734
Guranteed safe checkout
Product Description
Two powerful tools in one
The Fluke 1587 and 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Whether you work on motors, generators, cables, or switch gear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
Features
- Insulation test voltages 500 V, 1000 V
- Insulation test: 0.1 MΩ to 600 MΩ
- Auto discharge of capacitive voltage
- AC/DC Voltage
- DC millivolts
- AC/DC milliamps
- Resistance (0.1 Ω to 50 MΩ)
- Continuity
- Three-year warranty
- Remote probe, test leads, alligator clips
- Rugged, utility hard case
- Auto power off to save battery power
- True RMS
- Large display with backlight
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- CAT III 1000V, CAT IV 600V measurement category
- Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work
Specifications: Fluke 1577 Insulation Multimeter
| Specifications | ||
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.2%+2) | |
| Maximum resolution | 0.001 V | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(2%+3) | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 400 mA |
| Amps accuracy | ±(1.0%+2) | |
| Maximum resolution | 0.01 mA | |
| Current AC | Maximum amps | 400 mA |
| Amps accuracy | ±(2.0%+2)* | |
| Maximum resolution | 0.01 mA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(1.2%+2) | |
| maximum resolution | 0.1Ω | |
| Insulation Test | ||
| Minimum test current @ 1kΩ/V | 1 mA | |
| Test voltages | 500, 1000 V | |
| Maximum resistance per test voltage | 50 V | |
| 100 V | ||
| 250 V | ||
| 500 V | ||
| 1000 V | 600 MΩ | |
| Maximum resolution per test voltage | 50 V | 0.01 MΩ |
| 100 V | 0.01 MΩ | |
| 250 V | 0.1 MΩ | |
| 500 V | 0.1 MΩ | |
| 1000 V | 0.1 MΩ | |
| Accuracy per test voltage | 50 V | ±(3% + 5) |
| 100 V | ±(3% + 5) | |
| 250 V | ±(1.5% + 5) | |
| 500 V | ±(2.0% + 5) | |
| 1000 V | ±(2.0% + 5) | |
| Environmental Specifications | ||
| Operating temperature | –20°C to +55°C | |
| Storage temperature | -40°C to +60°C | |
| Humidity (without condensation) | 0% - 95% (10°C – 30°C) 0% - 75% (30°C – 40°C) 0% - 40% (40°C – 55°C) | |
| Operating altitude | 2000 m | |
| Safety Specifications | ||
| Overvoltage category | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V | |
| Agency approvals | 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V | |
| Mechanical and General Specifications | ||
| Size | 203 x 100 x 50 mm (with holster) | |
| Weight | 624 g | |
| Warranty | 3 years | |
| Battery life alkaline | Meter use | 1000 hours |
| Insulation test use | Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. | |
| IP rating | IP40 | |
Includes:
- Remote probe
- Test leads
- Alligator clips
- Hard case
- Four AA alkaline batteries
- Quick reference guide
- CD rom with manual
