7-Inch HMI Touch Screen (Model CT107) with M3 Cable, 24VDC, RS485 Modbus RTU - Industrial Control Panel for Automation & PLC Systems
$529.1 $962
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:24724126
Guranteed safe checkout
Product Description

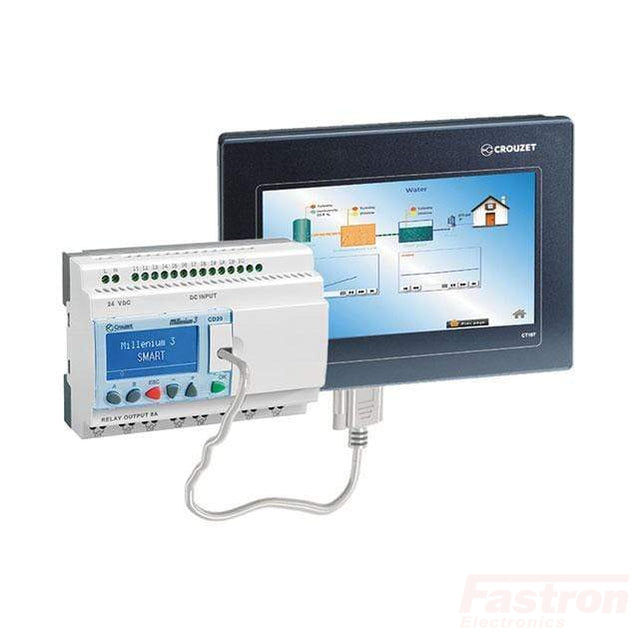

Crouzet 88970533, Essential Series CT107, 7" HMI Touch Screen(88970534) with M3 Cable, 24VDC, RS485 Modbus RTU
- TFT-LCD resistive touch screen
- Fan less cooling system
- 32 bit 600 Mhz or 1 Ghz Cortex-A8 processor
- Built-in RTC
- Direct communication with M3 programming port
- Modbus RS485 protocol (drivers for M3, EVO and em4)
- Modbus TCP/IP protocol (drivers for M3, EVO and em4)
- Integrated VNC server
- Additional functions provided by Crouzet Touch programming software (e-mails,recipe database, enhanced security…)
- CE mark, cULus listed
Specification
| Crouzet Part Number | 88970534 (CT107) + 88970534 |
| Function | Human Machine Interface (Touch Screen) + Connection Cable |
| Nominal Voltage | 24VDC (19.2 - 28.8VDC) @ 500mA |
| Display Size | 7" |
| Resolution | 800 x 480 |
| Brightness | 300 cd/m² |
| Storage Memory | 128MByte |
| RAM Memory | 128MByte |
| USB | Host USB 2.0 |
| Ethernet | N/A |
| Port RS232 | COM1 Male |
| Port RS485 | COM1 2/4 wires Male, COM3 2 wires Male |
| Voltage Resistance | 500VAC (1 Min) |
| Dimensions | 200.4 x 146.5 x 34 mm / 7.89 x 5.77 x 1.34” |
| Real Time Clock | 5 Years with CR2032 Battery |
| Termination Style | Screw |
| Weight | 520g |
| Certification | CE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
Datasheet
