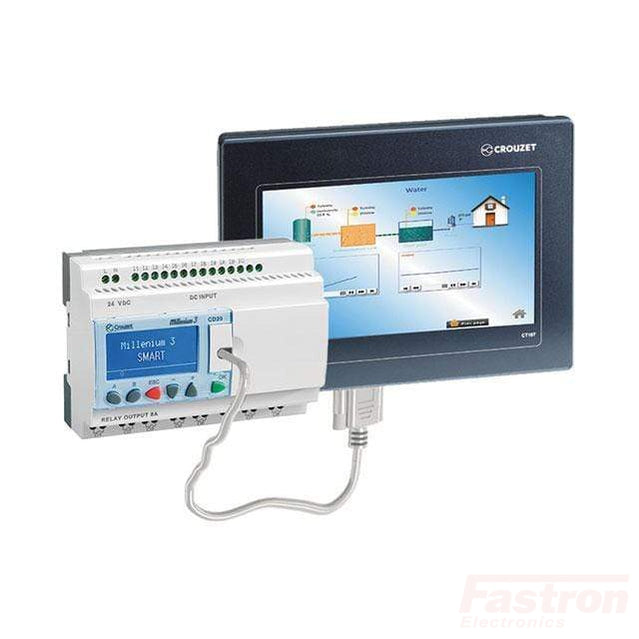

Millennium 3 Kit with CT107 HMI Screen - Essential XD26 16I/10O R Controller - 16 Digital & 6 Analog Inputs, 10 Relay Outputs (4 PWM) - 24VDC with Serial & Programming Cables - Perfect for Industrial Automation & PLC Control Systems
$804.48 $1462.7
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:29 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:98860117
Guranteed safe checkout
Product Description
Crouzet Millenium 3 Kit, CT107 HMI Screen, Essential XD26-16I/10O R, 16 x On/Off inputs, Incl 6 analogue inputs, 10 x Static relay outputs incl 4 x PWM output, 24 VDC, w/ Serial and programming cables.
Specification
| Crouzet Part Number | 88974161 (XD26-16I/10O R) |
| Analogue Inputs | 0-10VDC (x6) |
| Digital Inputs | 12/24VDC (4.4mA @ 12VDC) (x16) |
| Digital Outputs | Relay, 5-30VDC,24-250VAC @ 10mA minimum (x10) |
| PWM SSR Output | 12-24VDC @ 500mA (x4) |
| Expandable | Yes |
| LCD Display | Yes |
| Mounting Style | DIN Rail Mount (124.6mm) |
| Supply Voltage Range | 24VDC (21.6 - 28.8VDC) |
| Termination Style | Screw |
| Weight | 350g |
| Certification | CE, UL, CSA, GL |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
| Crouzet Part Number | 88970534 (CT107) |
| Function | Human Machine Interface (Touch Screen) |
| Nominal Voltage | 24VDC (19.2 - 28.8VDC) @ 500mA |
| Display Size | 7" |
| Resolution | 800 x 480 |
| Brightness | 300 cd/m² |
| Storage Memory | 128MByte |
| RAM Memory | 128MByte |
| USB | Host USB 2.0 |
| Ethernet | N/A |
| Port RS232 | COM1 Male |
| Port RS485 | COM1 2/4 wires Male, COM3 2 wires Male |
| Voltage Resistance | 500VAC (1 Min) |
| Dimensions | 200.4 x 146.5 x 34 mm / 7.89 x 5.77 x 1.34” |
| Real Time Clock | 5 Years with CR2032 Battery |
| Termination Style | Screw |
| Weight | 520g |
| Certification | CE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
