Millennium 3 Kit - CT104 HMI Touch Panel & Essential XD10 6I/4O R PLC Controller with 6 On/Off Inputs, 4 Analog Inputs, 10 Relay Outputs (Incl PWM), 24VDC - Includes Serial & Programming Cables | Ideal for Industrial Automation, Machine Control & Smart Home Systems
$546.59 $993.8
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:56235516
Guranteed safe checkout
Product Description

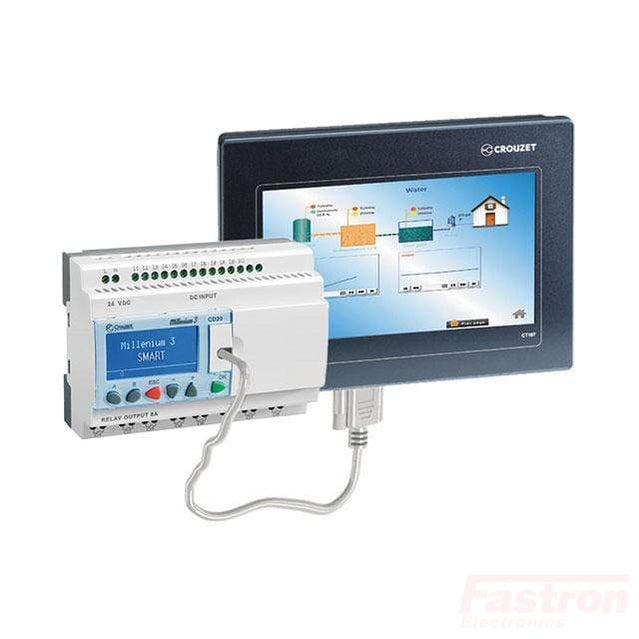

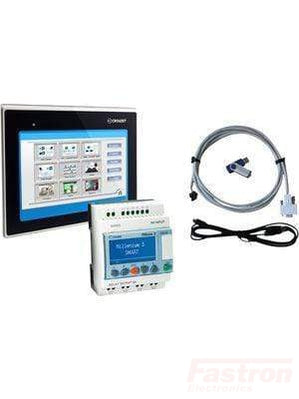

Crouzet Millenium 3 Kit, CT104 HMI Touch + Essential XD10-6I/4O R, 6 x On/Off inputs, Incl 4 analogue inputs, 10 Static relay outputs incl 1 x PWM output, 24 VDC, Comes with Serial Cable, and programming cables
Specification
| Crouzet Part Number | 88970141 (XD10-6I/4O R) |
| Analogue Inputs | 0-10VDC (x4) |
| Digital Inputs | 12/24VDC (4.4mA @ 12VDC) (x6) |
| Digital Outputs | 4 x Relay, 5-30VDC,24-250VAC @ 10mA minimum |
| PWM SSR Output | 12-24VDC @ 500mA (x1) |
| Expandable | Yes |
| LCD Display | Yes |
| Mounting Style | DIN Rail Mount (71.2mm) |
| Supply Voltage Range | 24VDC (21.6 - 28.8VDC) |
| Termination Style | Screw |
| Weight | 170g |
| Certification | CE, UL, CSA, GL |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
| Crouzet Part Number | 88970524 (CT104) |
| Function | Human Machine Interface (Touch Screen) |
| Nominal Voltage | 24VDC (19.2 - 28.8VDC) @ 300mA |
| Display Size | 4.3" |
| Resolution | 480 x 272 |
| Brightness | 400 cd/m² |
| Storage Memory | 128MByte |
| RAM Memory | 128MByte |
| USB | Host USB 2.0 |
| Ethernet | N/A |
| Port RS232 | COM1 Male |
| Port RS485 | COM1 2/4 wires Male, COM3 2 wires Male |
| Voltage Resistance | 500VAC (1 Min) |
| Dimensions | 128 x 102 x 32 mm / 5.04 x 4.02 x 1.26” |
| Real Time Clock | 5 Years with CR2032 Battery |
| Termination Style | Screw |
| Weight | 250g |
| Certification | CE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
Datasheet
Software
Compatibility

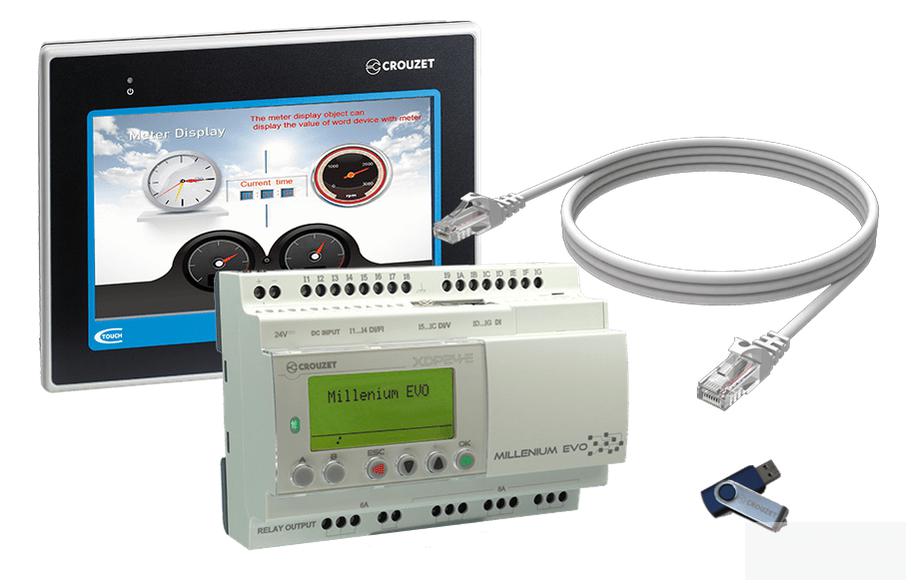

Built in Communications driver compatible with Millenium 3, Millenium EVO, and EM4 PLC's. See our for Pricing and Specification
